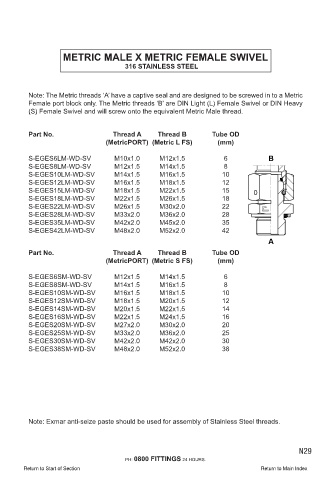

METRIC MALE X METRIC FEMALE SWIVEL
316 STAINLESS STEEL

Note: The Metric threads ‘A’ have a captive seal and are designed to be screwed in to a Metric
Female port block only. The Metric threads ‘B’ are DIN Light (L) Female Swivel or DIN Heavy
(S) Female Swivel and will screw onto the equivalent Metric Male thread.

Part No. Thread A Thread B Tube OD
(MetricPORT) (Metric L FS) (mm)

S-EGES6LM-WD-SV M10x1.0 M12x1.5 6
S-EGES8LM-WD-SV M12x1.5 M14x1.5 8
S-EGES10LM-WD-SV M14x1.5 M16x1.5 10
S-EGES12LM-WD-SV M16x1.5 M18x1.5 12
S-EGES15LM-WD-SV M18x1.5 M22x1.5 15
S-EGES18LM-WD-SV M22x1.5 M26x1.5 18
S-EGES22LM-WD-SV M26x1.5 M30x2.0 22
S-EGES28LM-WD-SV M33x2.0 M36x2.0 28
S-EGES35LM-WD-SV M42x2.0 M45x2.0 35
S-EGES42LM-WD-SV M48x2.0 M52x2.0 42

Part No. Thread A Thread B Tube OD
(MetricPORT) (Metric S FS) (mm)

S-EGES6SM-WD-SV M12x1.5 M14x1.5 6
S-EGES8SM-WD-SV M14x1.5 M16x1.5 8
S-EGES10SM-WD-SV M16x1.5 M18x1.5 10
S-EGES12SM-WD-SV M18x1.5 M20x1.5 12
S-EGES14SM-WD-SV M20x1.5 M22x1.5 14
S-EGES16SM-WD-SV M22x1.5 M24x1.5 16
S-EGES20SM-WD-SV M27x2.0 M30x2.0 20
S-EGES25SM-WD-SV M33x2.0 M36x2.0 25
S-EGES30SM-WD-SV M42x2.0 M42x2.0 30
S-EGES38SM-WD-SV M48x2.0 M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
