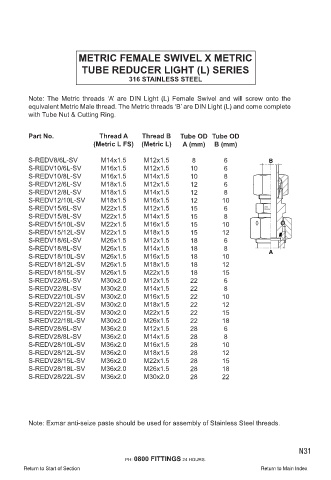

METRIC FEMALE SWIVEL X METRIC

TUBE REDUCER LIGHT (L) SERIES
316 STAINLESS STEEL

Note: The Metric threads ‘A’ are DIN Light (L) Female Swivel and will screw onto the
equivalent Metric Male thread. The Metric threads ‘B’ are DIN Light (L) and come complete
with Tube Nut & Cutting Ring.

Part No. Thread A Thread B Tube OD Tube OD
(Metric L FS) (Metric L) A (mm) B (mm)

S-REDV8/6L-SV M14x1.5 M12x1.5 8 6
S-REDV10/6L-SV M16x1.5 M12x1.5 10 6
S-REDV10/8L-SV M16x1.5 M14x1.5 10 8
S-REDV12/6L-SV M18x1.5 M12x1.5 12 6
S-REDV12/8L-SV M18x1.5 M14x1.5 12 8
S-REDV12/10L-SV M18x1.5 M16x1.5 12 10
S-REDV15/6L-SV M22x1.5 M12x1.5 15 6
S-REDV15/8L-SV M22x1.5 M14x1.5 15 8
S-REDV15/10L-SV M22x1.5 M16x1.5 15 10
S-REDV15/12L-SV M22x1.5 M18x1.5 15 12
S-REDV18/6L-SV M26x1.5 M12x1.5 18 6
S-REDV18/8L-SV M26x1.5 M14x1.5 18 8
S-REDV18/10L-SV M26x1.5 M16x1.5 18 10
S-REDV18/12L-SV M26x1.5 M18x1.5 18 12
S-REDV18/15L-SV M26x1.5 M22x1.5 18 15
S-REDV22/6L-SV M30x2.0 M12x1.5 22 6
S-REDV22/8L-SV M30x2.0 M14x1.5 22 8
S-REDV22/10L-SV M30x2.0 M16x1.5 22 10
S-REDV22/12L-SV M30x2.0 M18x1.5 22 12
S-REDV22/15L-SV M30x2.0 M22x1.5 22 15
S-REDV22/18L-SV M30x2.0 M26x1.5 22 18
S-REDV28/6L-SV M36x2.0 M12x1.5 28 6
S-REDV28/8L-SV M36x2.0 M14x1.5 28 8
S-REDV28/10L-SV M36x2.0 M16x1.5 28 10
S-REDV28/12L-SV M36x2.0 M18x1.5 28 12
S-REDV28/15L-SV M36x2.0 M22x1.5 28 15
S-REDV28/18L-SV M36x2.0 M26x1.5 28 18
S-REDV28/22L-SV M36x2.0 M30x2.0 28 22

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
