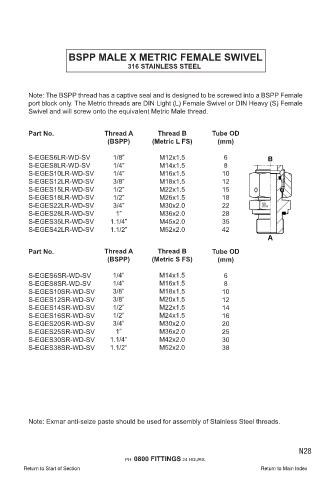

BSPP MALE X METRIC FEMALE SWIVEL
316 STAINLESS STEEL

Note: The BSPP thread has a captive seal and is designed to be screwed into a BSPP Female
port block only. The Metric threads are DIN Light (L) Female Swivel or DIN Heavy (S) Female
Swivel and will screw onto the equivalent Metric Male thread.

Part No. Thread A Thread B Tube OD
(BSPP) (Metric L FS) (mm)

S-EGES6LR-WD-SV 1/8” M12x1.5 6
S-EGES8LR-WD-SV 1/4” M14x1.5 8
S-EGES10LR-WD-SV 1/4” M16x1.5 10
S-EGES12LR-WD-SV 3/8” M18x1.5 12
S-EGES15LR-WD-SV 1/2” M22x1.5 15
S-EGES18LR-WD-SV 1/2” M26x1.5 18
S-EGES22LR-WD-SV 3/4” M30x2.0 22
S-EGES28LR-WD-SV 1” M36x2.0 28
S-EGES35LR-WD-SV 1.1/4” M45x2.0 35
S-EGES42LR-WD-SV 1.1/2” M52x2.0 42

Part No. Thread A Thread B Tube OD
(BSPP) (Metric S FS) (mm)

S-EGES6SR-WD-SV 1/4” M14x1.5 6
S-EGES8SR-WD-SV 1/4” M16x1.5 8
S-EGES10SR-WD-SV 3/8” M18x1.5 10
S-EGES12SR-WD-SV 3/8” M20x1.5 12
S-EGES14SR-WD-SV 1/2” M22x1.5 14
S-EGES16SR-WD-SV 1/2” M24x1.5 16
S-EGES20SR-WD-SV 3/4” M30x2.0 20
S-EGES25SR-WD-SV 1” M36x2.0 25
S-EGES30SR-WD-SV 1.1/4” M42x2.0 30
S-EGES38SR-WD-SV 1.1/2” M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
