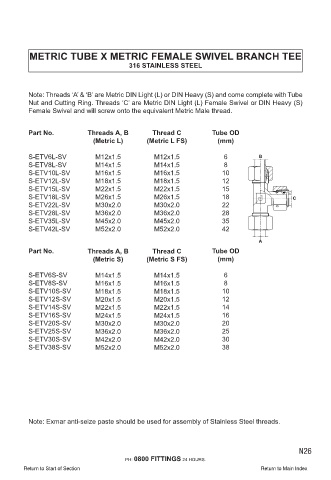

METRIC TUBE X METRIC FEMALE SWIVEL BRANCH TEE
316 STAINLESS STEEL

Note: Threads ‘A’ & ‘B’ are Metric DIN Light (L) or DIN Heavy (S) and come complete with Tube
Nut and Cutting Ring. Threads ‘C’ are Metric DIN Light (L) Female Swivel or DIN Heavy (S)
Female Swivel and will screw onto the equivalent Metric Male thread.

Part No. Threads A, B Thread C Tube OD
(Metric L) (Metric L FS) (mm)

S-ETV6L-SV M12x1.5 M12x1.5 6
S-ETV8L-SV M14x1.5 M14x1.5 8
S-ETV10L-SV M16x1.5 M16x1.5 10
S-ETV12L-SV M18x1.5 M18x1.5 12
S-ETV15L-SV M22x1.5 M22x1.5 15
S-ETV18L-SV M26x1.5 M26x1.5 18
S-ETV22L-SV M30x2.0 M30x2.0 22
S-ETV28L-SV M36x2.0 M36x2.0 28
S-ETV35L-SV M45x2.0 M45x2.0 35
S-ETV42L-SV M52x2.0 M52x2.0 42

Part No. Threads A, B Thread C Tube OD
(Metric S) (Metric S FS) (mm)

S-ETV6S-SV M14x1.5 M14x1.5 6
S-ETV8S-SV M16x1.5 M16x1.5 8
S-ETV10S-SV M18x1.5 M18x1.5 10
S-ETV12S-SV M20x1.5 M20x1.5 12
S-ETV14S-SV M22x1.5 M22x1.5 14
S-ETV16S-SV M24x1.5 M24x1.5 16
S-ETV20S-SV M30x2.0 M30x2.0 20
S-ETV25S-SV M36x2.0 M36x2.0 25
S-ETV30S-SV M42x2.0 M42x2.0 30
S-ETV38S-SV M52x2.0 M52x2.0 38

Note: Exmar anti-seize paste should be used for assembly of Stainless Steel threads.
