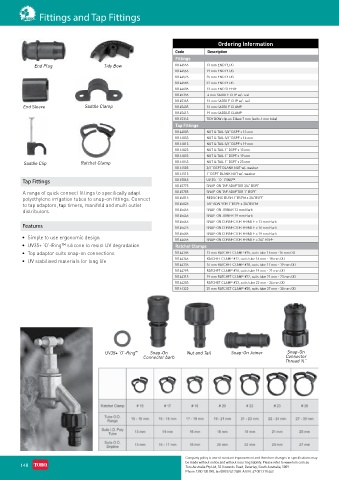

Page 160 - Toro Irrigation Product Catalogue August 2020

Fittings and Tap Fittings

Ordering Information
Code Description
Fittings
End Plug Tidy Bow 10144555 13 mm END PLUG
10144565 19 mm END PLUG
10144575 25 mm END PLUG
10144585 32 mm END PLUG
10144605 13 mm END SLEEVE
10145355 4 mm SADDLE CLIP w/- nail
10145365 13 mm SADDLE CLIP w/- nail
End Sleeve Saddle Clamp 10145405 13 mm SADDLE CLAMP
10145415 19 mm SADDLE CLAMP
10145345 TIDY BOW clip on Elbow 7 mm (suits 4 mm tube)
Tap Fittings
10144005 NUT & TAIL 3/4" BSPF x 13 mm
10144055 NUT & TAIL 3/4" BSPF x 16 mm
10144015 NUT & TAIL 3/4" BSPF x 19 mm
10144025 NUT & TAIL 1" BSPF x 13 mm
10144035 NUT & TAIL 1" BSPF x 19 mm
Saddle Clip Ratchet Clamp 10144045 NUT & TAIL 1" BSPF x 25 mm
10144505 3/4" BSPF BLANK NUT w/- washer
10144515 1" BSPF BLANK NUT w/- washer
Tap Fittings 10145865 UV 35+ `O`-RING™
10145775 SNAP-ON TAP ADAPTOR 3/4" BSPF
A range of quick connect fittings to specifically adapt 10145785 SNAP-ON TAP ADAPTOR 1" BSPF
polyethylene irrigation tubes to snap-on fittings. Connect 10145815 REDUCING BUSH 1"BSPM x 3/4"BSPF
to tap adaptors, tap timers, manifold and multi outlet 10145825 TAP ADAPTOR 1"BSPF x 3/4"BSPM
distributors. 10145455 SNAP-ON JOINER 13 mm Barb
10145445 SNAP-ON JOINER 19 mm Barb
10145465 SNAP-ON CONNECTOR FEMALE x 13 mm Barb
Features 10145475 SNAP-ON CONNECTOR FEMALE x 16 mm Barb
10145485 SNAP-ON CONNECTOR FEMALE x 19 mm Barb
• Simple to use ergonomic design 10144455 SNAP-ON CONNECTOR FEMALE x 3/4" BSPF
• UV35+ ‘O’-Ring™ silicone to resist UV degradation Ratchet Clamps
• Top adaptor suits snap-on connections 10144305 13 mm RATCHET CLAMP #15, suits tube 15 mm -16 mm OD
• UV stabilised materials for long life 10144345 RATCHET CLAMP #17, suits tube 16 mm - 18 mm OD
10144335 16 mm RATCHET CLAMP #18, suits tube 17 mm - 19 mm OD
10144295 RATCHET CLAMP #20, suits tube 19 mm - 21 mm OD
10144315 19 mm RATCHET CLAMP #22, suits tube 21 mm - 23 mm OD
10144285 RATCHET CLAMP #23, suits tube 22 mm - 24 mm OD
10144325 25 mm RATCHET CLAMP #28, suits tube 27 mm - 30 mm OD

UV35+ ‘O’-Ring ™ Snap-On Nut and Tail Snap-On Joiner Snap-On
Connector barb Connector
Thread ¾˝

Company policy is one of constant improvement and therefore changes in specifications may
148 be made without notice and without incurring liability. Please refer to www.toro.com.au
