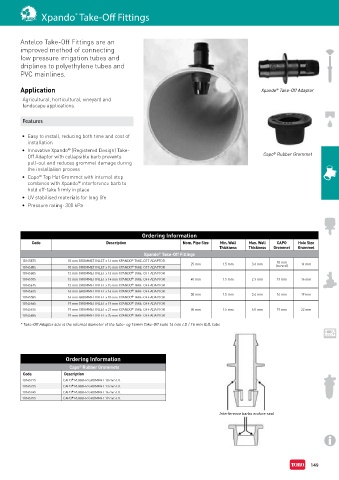

Xpando  Take-Off Fittings
                           ®



        Antelco Take-Off Fittings are an
        improved method of connecting
        low pressure irrigation tubes and
        driplines to polyethylene tubes and
        PVC mainlines.


        Application                                                                          Xpando  Take-Off Adaptor
                                                                                                  ®
         Agricultural, horticultural, vineyard and
         landscape applications.


         Features

         •  Easy to install, reducing both time and cost of
           installation
         •  Innovative Xpando  (Registered Design) Take-
                         ®
                                                                                                 ®
           Off Adaptor with collapsible barb prevents                                        Capo  Rubber Grommet
           pull-out and reduces grommet damage during
           the installation process
         •  Capo  Top Hat Grommet with internal step
               ®
                            ®
           combines with Xpando  interference barb to
           hold off-take firmly in place
         •  UV stabilised materials for long life
         •  Pressure rating: 300 kPa





                                                   Ordering Information
            Code                      Description                Nom. Pipe Size  Min. Wall   Max. Wall   CAPO   Hole Size
                                                                              Thickness  Thickness  Grommet  Grommet
                                                         ®
                                                    Xpando  Take-Off Fittings
         10145875        10 mm GROMMET INLET x 14 mm XPANDO ®  TAKE-OFF ADAPTOR                   10 mm
                                                                    25 mm      1.5 mm    3.6 mm            14 mm
         10145885        10 mm GROMMET INLET x 15 mm XPANDO ®  TAKE-OFF ADAPTOR                   (curved)
         10145605        13 mm GROMMET INLET x 13 mm XPANDO ®  TAKE-OFF ADAPTOR
         10145595        13 mm GROMMET INLET x 14 mm XPANDO ®  TAKE-OFF ADAPTOR   40 mm  1.5 mm  2.3 mm  13 mm  16 mm
         10145615        13 mm GROMMET INLET x 15 mm XPANDO ®  TAKE-OFF ADAPTOR
         10145635        16 mm GROMMET INLET x 16 mm XPANDO ®  TAKE-OFF ADAPTOR   50 mm  1.5 mm  3.6 mm   16 mm  19 mm
         10145585        16 mm GROMMET INLET x 18 mm XPANDO ®  TAKE-OFF ADAPTOR
         10145665        19 mm GROMMET INLET x 19 mm XPANDO ®  TAKE-OFF ADAPTOR
         10145675        19 mm GROMMET INLET x 21 mm XPANDO ®  TAKE-OFF ADAPTOR   50 mm  1.5 mm  6.0 mm  19 mm  22 mm
         10145685        19 mm GROMMET INLET x 25 mm XPANDO ®  TAKE-OFF ADAPTOR
        * Take-Off Adapter size is the internal diameter of the tube- eg 14mm Take-Off suits 14 mm I.D / 16 mm O.D. tube






                        Ordering Information
                             ®
                         Capo  Rubber Grommets
         Code           Description
         10145725      CAPO ®  RUBBER GROMMET 10 mm I.D.
         10145735      CAPO ®  RUBBER GROMMET 13 mm I.D.
         10145745      CAPO ®  RUBBER GROMMET 16 mm I.D.
         10145755      CAPO ®  RUBBER GROMMET 19 mm I.D.

                                                                              Interference barbs endure seal









                                                                                                              149
