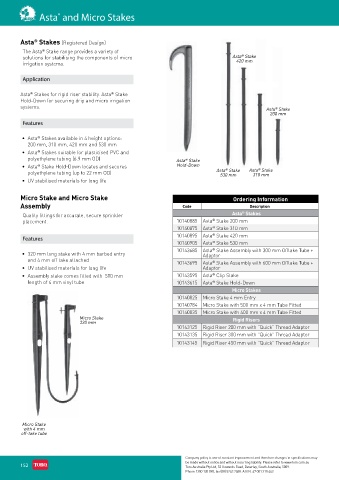

Page 164 - Toro Irrigation Product Catalogue August 2020

Asta and Micro Stakes
®

®
Asta Stakes (Registered Design)
The Asta Stake range provides a variety of
®
®
solutions for stabilising the components of micro Asta Stake
irrigation systems. 420 mm
Application

®
®
Asta Stakes for rigid riser stability. Asta Stake
Hold-Down for securing drip and micro irrigation
systems. Asta Stake
®
200 mm
Features

®
• Asta Stakes available in 4 height options:
200 mm, 310 mm, 420 mm and 530 mm
®
• Asta Stakes suitable for plasticised PVC and
polyethylene tubing (6.9 mm OD) Asta Stake
®
• Asta Stake Hold-Down locates and secures Hold-Down
®
®
®
polyethylene tubing (up to 22 mm OD) Asta Stake Asta Stake
310 mm
530 mm
• UV stabilised materials for long life
Micro Stake and Micro Stake Ordering Information
Assembly Code Description
®
Quality fittings for accurate, secure sprinkler Asta Stakes
®
placement. 10140885 Asta Stake 200 mm
10140875 Asta Stake 310 mm
®
10140895 Asta Stake 420 mm
®
Features
10140905 Asta Stake 530 mm
®
10143685 Asta Stake Assembly with 300 mm Offtake Tube +
®
• 320 mm long stake with 4 mm barbed entry Adaptor
and 4 mm off take attached 10143695 Asta Stake Assembly with 600 mm Offtake Tube +
®
• UV stabilised materials for long life Adaptor
®
• Assembly stake comes fitted with 500 mm 10143595 Asta Clip Stake
length of 4 mm vinyl tube 10143615 Asta Stake Hold-Down
®
Micro Stakes
10140825 Micro Stake 4 mm Entry
10140784 Micro Stake with 500 mm x 4 mm Tube Fitted
10140835 Micro Stake with 400 mm x 4 mm Tube Fitted
Micro Stake Rigid Risers
320 mm
10143125 Rigid Riser 200 mm with "Quick" Thread Adaptor
10143135 Rigid Riser 300 mm with "Quick" Thread Adaptor
10143145 Rigid Riser 450 mm with "Quick" Thread Adaptor

Micro Stake
with 4 mm
off-take tube

Company policy is one of constant improvement and therefore changes in specifications may
152 be made without notice and without incurring liability. Please refer to www.toro.com.au
