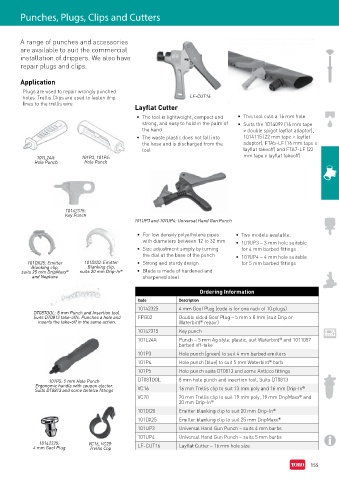

Page 167 - Toro Irrigation Product Catalogue August 2020

Punches, Plugs, Clips and Cutters

A range of punches and accessories
are available to suit the commercial
installation of drippers. We also have
repair plugs and clips.

Application
Plugs are used to repair wrongly punched
holes. Trellis Clips are used to fasten drip LF-CUT16
lines to the trellis wire.
Layflat Cutter
• The tool is lightweight, compact and • This tool cuts a 16 mm hole
strong, and easy to hold in the palm of • Suits the 1014099 (16 mm tape
the hand × double spigot layflat adaptor),
• The waste plastic does not fall into 1014115 (22 mm tape × layflat
the hose and is discharged from the adaptor), FTA5-LF (16 mm tape x
tool layflat takeoff) and FTA7-LF (22
101L24A: 101P3, 101P4: mm tape x layflat takeoff)
Hole Punch Hole Punch

10142315:
Key Punch
101UP3 and 101UP4: Universal Hand Gun Punch

• For low density polyethylene pipes • Two models available:
with diameters between 12 to 32 mm • 101UP3 – 3 mm hole suitable
• Size adjustment simply by turning for 4 mm barbed fittings
the dial at the base of the punch • 101UP4 – 4 mm hole suitable
101DX25: Emitter 101DI20: Emitter • Strong and sturdy design for 5 mm barbed fittings
Blanking clip, Blanking clip,
suits 25 mm DripMaxx ® suits 20 mm Drip-In ® • Blade is made of hardened and
and Neptune sharpened steel

Ordering Information
Code Description
10142325 4 mm Goof Plug (code is for one rack of 10 plugs)
DT08TOOL: 8 mm Punch and Insertion tool.
Suits DT0813 take-offs. Punches a hole and FPG02 Double sided Goof Plug – 5 mm x 8 mm (suit Drip or
inserts the take-off in the same action. Waterbird repair)
®
10142315 Key punch
101L24A Punch – 5 mm Ag style, plastic, suit Waterbird and 1011057
®
barbed off-take
101P3 Hole punch (green) to suit 4 mm barbed emitters
®
101P4 Hole punch (blue) to suit 5 mm Waterbird barb
101P5 Hole punch suits DT0813 and some Antleco fittings
101P5: 5 mm Hole Punch DT08TOOL 8 mm hole punch and insertion tool. Suits DT0813
Ergonomic handle with coupon ejector. ®
Suits DT0813 and some Antelco fittings VC16 16 mm Trellis clip to suit 13 mm poly and 16 mm Drip-In
VC20 20 mm Trellis clip to suit 19 mm poly, 19 mm DripMaxx and
®
20 mm Drip-In ®
101DI20 Emitter blanking clip to suit 20 mm Drip-In ®
101DX25 Emitter blanking clip to suit 25 mm DripMaxx ®
101UP3 Universal Hand Gun Punch – suits 4 mm barbs
101UP4 Universal Hand Gun Punch – suits 5 mm barbs
10142325: VC16, VC20:
4 mm Goof Plug Trellis Clip LF-CUT16 Layflat Cutter – 16 mm hole size

155
