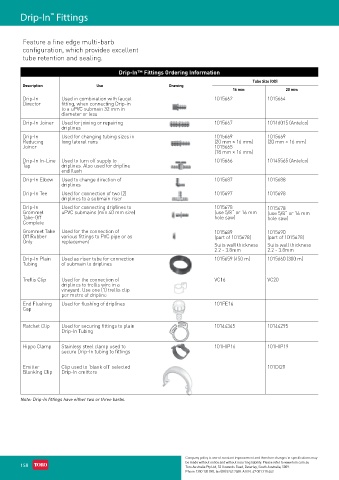

Page 170 - Toro Irrigation Product Catalogue August 2020

Drip-In Fittings
™

Feature a fine edge multi-barb
configuration, which provides excellent
tube retention and sealing.

Drip-In™ Fittings Ordering Information
Tube Size (OD)
Description Use Drawing
16 mm 20 mm
Drip-In Used in combination with faucet 1015662 1015664
Director fitting, when connecting Drip-in
to a uPVC submain 32 mm in
diameter or less
Drip-In Joiner Used for joining or repairing 1015667 10146015 (Antelco)
driplines
Drip-In Used for changing tubing sizes in 1015669 1015669
Reducing long lateral runs (20 mm × 16 mm) (20 mm × 16 mm)
Joiner 1015665
(18 mm × 16 mm)
Drip-In In-Line Used to turn off supply to 1015666 10145565 (Antelco)
Tap driplines. Also used for dripline
end flush
Drip-In Elbow Used to change direction of 1015687 1015688
driplines
Drip-In Tee Used for connection of two (2) 1015697 1015698
driplines to a submain riser
Drip-In Used for connecting driplines to 1015678 1015678
Grommet uPVC submains (min 40 mm size) (use 5/8˝ or 16 mm (use 5/8˝ or 16 mm
Take-Off hole saw) hole saw)
Complete
Grommet Take Used for the connection of 1015689 1015690
Off Rubber various fittings to PVC pipe or as (part of 1015678) (part of 1015678)
Only replacement
Suits wall thickness Suits wall thickness
2.2 - 3.8mm 2.2 - 3.8mm
Drip-In Plain Used as riser tube for connection 1015659 (450 m) 1015660 (300 m)
Tubing of submain to driplines

Trellis Clip Used for the connection of VC16 VC20
driplines to trellis wire in a
vineyard. Use one (1) trellis clip
per metre of dripline
End Flushing Used for flushing of driplines 101FE16
Cap

Ratchet Clip Used for securing fittings to plain 10144345 10144295
Drip-In Tubing

Hippo Clamp Stainless steel clamp used to 101HIP16 101HIP19
secure Drip-In tubing to fittings

Emitter Clip used to ‘blank off’ selected 101DI20
Blanking Clip Drip-In emitters

Note: Drip-In fittings have either two or three barbs.
