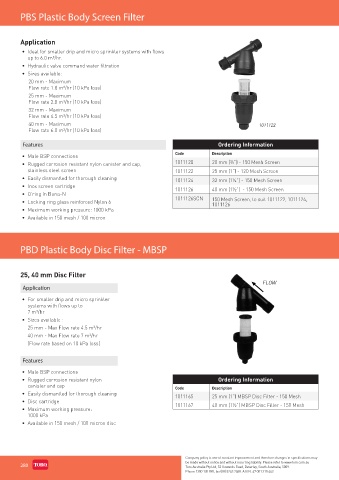

Page 300 - Toro Irrigation Product Catalogue August 2020

PBS Plastic Body Screen Filter

Application

• Ideal for smaller drip and micro sprinkler systems with flows
up to 6.0 m³/hr.
• Hydraulic valve command water filtration
• Sizes available:
20 mm - Maximum
Flow rate 1.8 m³/hr (10 kPa loss)
25 mm - Maximum
Flow rate 2.8 m³/hr (10 kPa loss)
32 mm - Maximum
Flow rate 4.5 m³/hr (10 kPa loss)
40 mm - Maximum 1011122
Flow rate 6.0 m³/hr (10 kPa loss)

Features Ordering Information

• Male BSP connections Code Description
• Rugged corrosion resistant nylon canister and cap, 1011120 20 mm (¾”) - 150 Mesh Screen
stainless steel screen 1011122 25 mm (1”) - 120 Mesh Screen
• Easily dismantled for thorough cleaning 1011124 32 mm (1¼”) - 150 Mesh Screen
• Inox screen cartridge
1011126 40 mm (1½”) - 150 Mesh Screen
• O’ring in Buna-N
• Locking ring glass reinforced Nylon 6 1011126SCN 150 Mesh Screen, to suit 1011122, 1011124,
1011126
• Maximum working pressure: 1000 kPa
• Available in 150 mesh / 100 micron

PBD Plastic Body Disc Filter - MBSP

25, 40 mm Disc Filter
FLOW
Application

• For smaller drip and micro sprinkler
systems with flows up to
7 m³/hr
• Sizes available :
25 mm - Max Flow rate 4.5 m³/hr
40 mm - Max Flow rate 7 m³/hr
(Flow rate based on 10 kPa loss)

Features

• Male BSP connections
• Rugged corrosion resistant nylon Ordering Information
canister and cap Code Description
• Easily dismantled for thorough cleaning 1011165 25 mm (1”) MBSP Disc Filter - 150 Mesh
• Disc cartridge 1011167 40 mm (1½”) MBSP Disc Filter - 150 Mesh
• Maximum working pressure:
1000 kPa
• Available in 150 mesh / 100 micron disc
