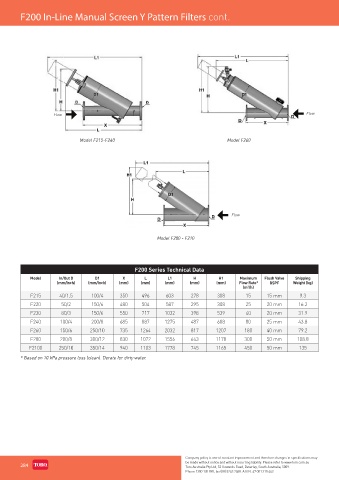

F200 In-Line Manual Screen Y Pattern Filters cont.

Flow Flow

Model F215-F240 Model F260

Flow

Model F280 - F210

F200 Series Technical Data
Model In/Out D D1 X L L1 H H1 Maximum Flush Valve Shipping
(mm/inch) (mm/inch) (mm) (mm) (mm) (mm) (mm) Flow Rate* BSPF Weight (kg)
(m /h)
3
F215 40/1.5 100/4 350 496 603 278 308 15 15 mm 9.3
F220 50/2 150/6 480 504 587 295 308 25 20 mm 16.2
F230 80/3 150/6 550 717 1032 398 539 40 20 mm 31.9
F240 100/4 200/8 685 887 1275 487 688 80 25 mm 43.8
F260 150/6 250/10 735 1264 2032 817 1207 180 40 mm 79.2
F280 200/8 300/12 830 1072 1556 643 1178 300 50 mm 108.8
F2100 250/10 350/14 940 1103 1778 745 1165 450 50 mm 135
* Based on 10 kPa pressure loss (clean). Derate for dirty water.
