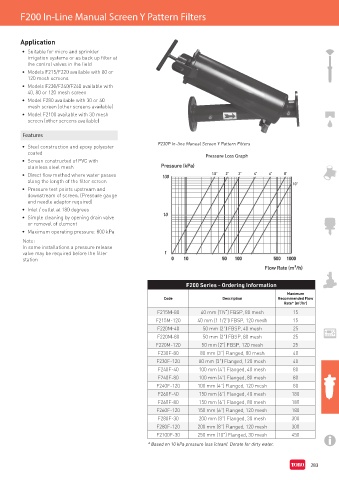

Page 303 - Toro Irrigation Product Catalogue August 2020

F200 In-Line Manual Screen Y Pattern Filters

Application

• Suitable for micro and sprinkler
irrigation systems or as back up filter at
the control valves in the field
• Models F215/F220 available with 80 or
120 mesh screens
• Models F230/F240/F260 available with
40, 80 or 120 mesh screen
• Model F280 available with 30 or 40
mesh screen (other screens available)
• Model F2100 available with 30 mesh
screen (other screens available)

Features
F230P In-line Manual Screen Y Pattern Filters
• Steel construction and epoxy polyester
coated Pressure Loss Graph
• Screen constructed of PVC with
stainless steel mesh
• Direct flow method where water passes
along the length of the filter screen
• Pressure test points upstream and
downstream of screen. (Pressure gauge
and needle adaptor required)
• Inlet / outlet at 180 degrees
• Simple cleaning by opening drain valve
or removal of element
• Maximum operating pressure: 800 kPa
Note:
In some installations a pressure release
valve may be required before the filter
station

F200 Series - Ordering Information
Maximum
Code Description Recommended Flow
Rate* (m /hr)
3
F215M-80 40 mm (1½") FBSP, 80 mesh 15
F215M-120 40 mm (1 1/2") FBSP, 120 mesh 15
F220M-40 50 mm (2") FBSP, 40 mesh 25
F220M-80 50 mm (2") FBSP, 80 mesh 25
F220M-120 50 mm (2") FBSP, 120 mesh 25
F230F-80 80 mm (3") Flanged, 80 mesh 40
F230F-120 80 mm (3") Flanged, 120 mesh 40
F240F-40 100 mm (4") Flanged, 40 mesh 80
F240F-80 100 mm (4") Flanged, 80 mesh 80
F240F-120 100 mm (4") Flanged, 120 mesh 80
F260F-40 150 mm (6") Flanged, 40 mesh 180
F260F-80 150 mm (6") Flanged, 80 mesh 180
F260F-120 150 mm (6") Flanged, 120 mesh 180
F280F-30 200 mm (8") Flanged, 30 mesh 300
F280F-120 200 mm (8") Flanged, 120 mesh 300
F2100F-30 250 mm (10") Flanged, 30 mesh 450
* Based on 10 kPa pressure loss (clean). Derate for dirty water.
