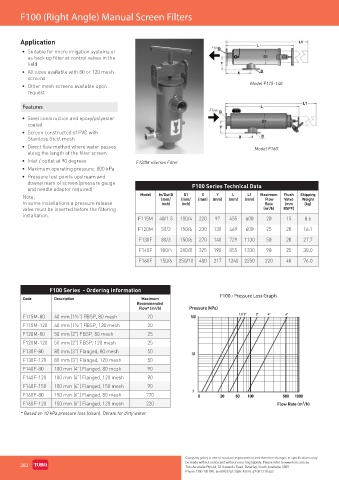

Page 302 - Toro Irrigation Product Catalogue August 2020

F100 (Right Angle) Manual Screen Filters

Application
Flow
• Suitable for micro irrigation systems or
as back up filter at control valves in the
field
• All sizes available with 80 or 120 mesh
screens
• Other mesh screens available upon Model F115-140
request

Features
Flow
• Steel construction and epoxy/polyester
coated
• Screen constructed of PVC with
Stainless Steel mesh
• Direct flow method where water passes Model F160
along the length of the filter screen
• Inlet / outlet at 90 degrees F120M «Series Filter
• Maximum operating pressure: 800 kPa
• Pressure test points upstream and
downstream of screen (pressure gauge
and needle adaptor required) F100 Series Technical Data
Y
L1
L
D1
X
Note: Model In/Out D (mm/ (mm) (mm) (mm) (mm) Maximum Flush Shipping
Weight
(mm/
Valve
Flow
In some installations a pressure release inch) inch) Rate (mm (kg)
valve must be inserted before the filtering (m /h) BSPF)
3
installation.
F115M 40/1.5 100/4 220 97 455 600 20 15 8.6
F120M 50/2 150/6 230 130 469 600 25 20 16.1
F130F 80/3 150/6 270 140 729 1130 50 20 27.7
F140F 100/4 200/8 325 190 855 1330 90 25 38.0
F160F 150/6 250/10 480 217 1240 2250 220 40 76.0

F100 Series - Ordering Information
F100 - Pressure Loss Graph
Code Description Maximum
Recommended
Flow* (m³/h)
F115M-80 40 mm (1½”) FBSP, 80 mesh 20
F115M-120 40 mm (1½”) FBSP, 120 mesh 20
F120M-80 50 mm (2”) FBSP, 80 mesh 25
F120M-120 50 mm (2”) FBSP, 120 mesh 25
F130F-80 80 mm (3”) Flanged, 80 mesh 50
F130F-120 80 mm (3”) Flanged, 120 mesh 50
F140F-80 100 mm (4”) Flanged, 80 mesh 90
F140F-120 100 mm (4”) Flanged, 120 mesh 90
F140F-150 100 mm (4”) Flanged, 150 mesh 90
F160F-80 150 mm (6”) Flanged, 80 mesh 220
F160F-120 150 mm (6”) Flanged, 120 mesh 220
* Based on 10 kPa pressure loss (clean). Derate for dirty water.
