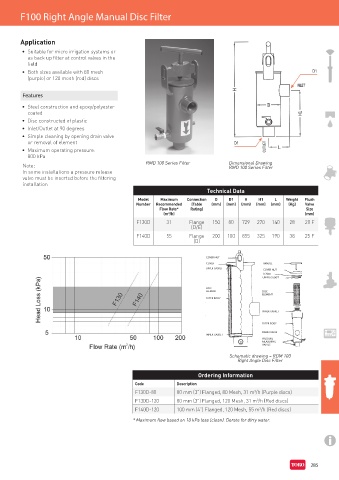

F100 Right Angle Manual Disc Filter

Application

• Suitable for micro irrigation systems or
as back up filter at control valves in the
field
• Both sizes available with 80 mesh D1
(purple) or 120 mesh (red) discs
INLET
Features

• Steel construction and epoxy/polyester
coated
• Disc constructed of plastic
• Inlet/Outlet at 90 degrees
• Simple cleaning by opening drain valve
or removal of element D1
• Maximum operating pressure: OUTLET
800 kPa
RMD 100 Series Filter Dimensional Drawing
Note: RMD 100 Series Filter
In some installations a pressure release
valve must be inserted before the filtering
installation
Technical Data
Model Maximum Connection D D1 H H1 L Weight Flush
Number Recommended (Table (mm) (mm) (mm) (mm) (mm) (Kg) Valve
Flow Rate* Rating) Size
(m³/h) (mm)
F130D 31 Flange 150 80 729 270 140 28 20 F
(D/E)
F140D 55 Flange 200 100 855 325 190 38 25 F
(D)
Schematic - Clear-Flo RMS 100 Right Angle Screen Filter

COVER NUT
COVER HANDLE
UPPER GASKET COVER NUT
COVER
UPPER GASKET
DISC
ELEMENT DISC
ELEMENT
FILTER BODY
INNER GASKET
INNER GASKET
FILTER BODY
DRAIN VALVE
INNER GASKET
PRESSURE
MEASURING
VALVES
Schematic drawing − RDM 100
Right Angle Disc Filter

Ordering Information

Code Description
F130D-80 80 mm (3”) Flanged, 80 Mesh, 31 m /h (Purple discs)
3
F130D-120 80 mm (3”) Flanged, 120 Mesh, 31 m /h (Red discs)
3
F140D-120 100 mm (4”) Flanged, 120 Mesh, 55 m /h (Red discs)
3
* Maximum flow based on 10 kPa loss (clean). Derate for dirty water.
