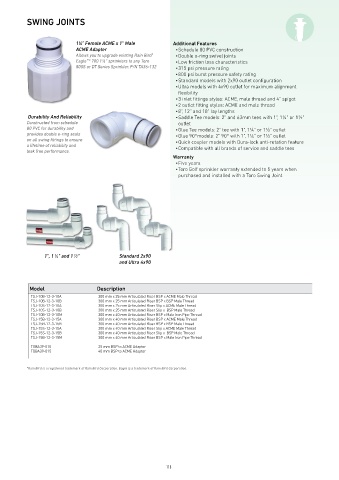

SWING JOINTS



                            1¼” Female ACME x 1” Male         Additional Features
                            ACME Adapter                       • Schedule 80 PVC construction
                            Allows you to upgrade existing Rain Bird   ®  • Double o-ring swivel joints
                            Eagle * 700 1¼” sprinklers to any Toro   • Low friction loss characteristics
                               ™
                            800S or DT Series Sprinkler. P/N TA36-132   • 315 psi pressure rating
                                                               • 800 psi burst pressure safety rating
                                                               • Standard models with 2x90 outlet configuration
                                                               • Ultra models with 4x90 outlet for maximum alignment
                                                                flexibility
                                                               • 3 inlet fittings styles: ACME, male thread and 4” spigot
                                                               • 2 outlet fitting styles: ACME and male thread
                                                               • 8", 12” and 18” lay lengths
           Durability And Reliability                          • Saddle Tee models: 2” and 63mm tees with 1”, 1¼” or 1½”
          Constructed from schedule                             outlet
          80 PVC for durability and                            • Glue Tee models: 2” tee with 1”, 1¼” or 1½” outlet
          provides double o-ring seals                         • Glue 90°models: 2” 90° with 1”, 1¼” or 1½” outlet
          on all swing fittings to ensure                      • Quick coupler models with Dura-lock anti-rotation feature
          a lifetime of reliability and                        • Compatible with all brands of service and saddle tees
          leak free performance.
                                                              Warranty
                                                               • Five years
                                                               • Toro Golf sprinkler warranty extended to 5 years when
                                                                purchased and installed with a Toro Swing Joint.
















                 1", 1¼" and 1½"           Standard 2x90
                                           and Ultra 4x90



           Model                   Description
            TSJ-10B-12-3-10A        300 mm x 25 mm Articulated Riser BSP x ACME Male Thread
            TSJ-10B-12-3-10B        300 mm x 25 mm Articulated Riser BSP x BSP Male Thread
            TSJ-10S-12-3-10A        300 mm x 25 mm Articulated Riser Slip x ACME Male Thread
            TSJ-10S-12-3-10B        300 mm x 25 mm Articulated Riser Slip x  BSP Male Thread
            TSJ-10B-12-3-10M        300 mm x 40 mm Articulated Riser BSP x Male Iron Pipe Thread
            TSJ-15B-12-3-15A        300 mm x 40 mm Articulated Riser BSP x ACME Male Thread
            TSJ-15B-12-3-15B        300 mm x 40 mm Articulated Riser BSP x BSP Male Thread
            TSJ-15S-12-3-15A        300 mm x 40 mm Articulated Riser Slip x ACME Male Thread
            TSJ-15S-12-3-15B        300 mm x 40 mm Articulated Riser Slip x  BSP Male Thread
            TSJ-15B-12-3-15M        300 mm x 40 mm Articulated Riser BSP x Male Iron Pipe Thread
            TOBA39-010              25 mm BSP to ACME Adaptor
            TOBA39-015              40 mm BSP to ACME Adaptor

          *Rain Bird is a registered trademark of Rain Bird Corporation. Eagle is a trademark of Rain Bird Corporation.
