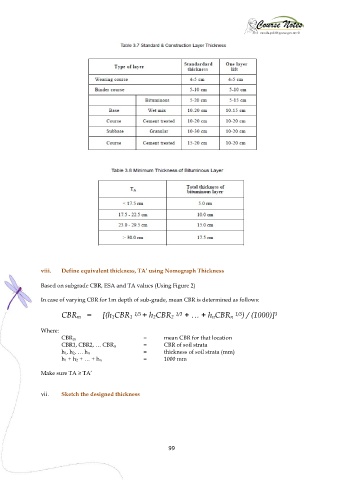

Page 106 - Lecture Notes DCC3113
P. 106
viii. Define equivalent thickness, TA’ using Nomograph Thickness
Based on subgrade CBR, ESA and TA values (Using Figure 2)
In case of varying CBR for 1m depth of sub-grade, mean CBR is determined as follows:
CBR m = [(h 1CBR 1 + h 2CBR 2 + … + h nCBR n ) / (1000)]
3
1/3
1/3
1/3
Where:
CBRm = mean CBR for that location
CBR1, CBR2, … CBRn = CBR of soil strata
h1, h2, … hn = thickness of soil strata (mm)
h1 + h2 + … + hn = 1000 mm
Make sure TA ≥ TA’
vii. Sketch the designed thickness
