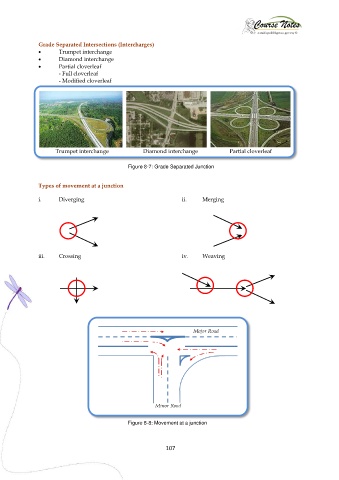

Grade Separated Intersections (Intercharges)
 Trumpet interchange
 Diamond interchange
 Partial cloverleaf
- Full cloverleaf
- Modified cloverleaf

Trumpet interchange Diamond interchange Partial cloverleaf

Figure 8-7: Grade Separated Junction

Types of movement at a junction

i. Diverging ii. Merging

iii. Crossing iv. Weaving

Figure 8-8: Movement at a junction

107
