From . & . , we have: I element = - - - - (2.43)
12
The total MMOI about the ‘x-axis’ is given by the sum of equations (2.42) and (2.43):
I yy = Rotation of all elements about the y − axis
+ Rotation of all elements about their own axis
mL 2 mW 2
I = +
yy
12 12
And, the MMOI about the ‘z-axis’ is as shown:

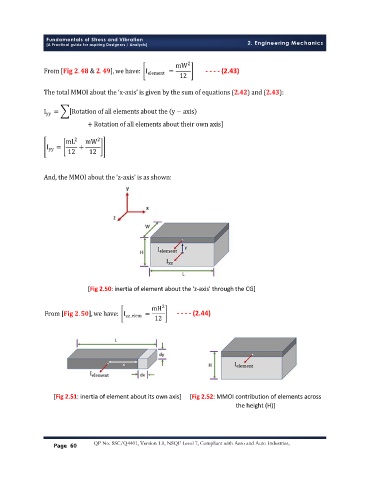

[Fig 2.50: inertia of element about the 'z-axis' through the CG]
mH 2
From . , we have: I zz,elem = - - - - (2.44)
12
[Fig 2.51: inertia of element about its own axis] [Fig 2.52: MMOI contribution of elements across
the height (H)]
