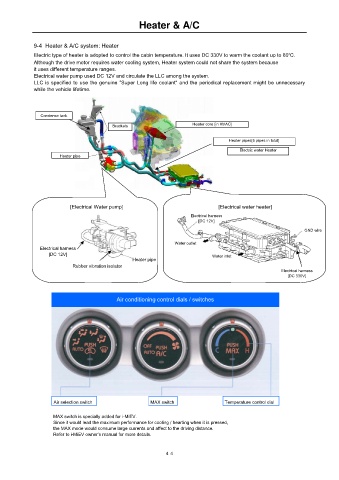

9-4 Heater & A/C system: Heater
Electric type of heater is adopted to control the cabin temperature. It uses DC 330V to warm the coolant up to 80℃.
Although the drive motor requires water cooling system, Heater system could not share the system because
it uses different temperature ranges.
Electrical water pump used DC 12V and circulate the LLC among the system.
LLC is specified to use the genuine “Super Long life coolant” and the periodical replacement might be unnecessary
while the vehicle lifetime.

Condense tank
Brackets Heater core [in HVAC]

Heater pipes[5 pipes in total]
Electric water Heater
Heater pipe

[Electrical Water pump] [Electrical water heater]
Electrical harness
[DC 12V]
GND wire

Water outlet
Electrical harness
[DC 12V] Water inlet
Heater pipe
Rubber vibration isolator
Electrical harness
[DC 330V]

Air conditioning control dials / switches

Air selection switch MAX switch Temperature control dial

MAX switch is specially added for i-MiEV.
Since it would lead the maximum performance for cooling / hearting when it is pressed,
the MAX mode would consume large currents and affect to the driving distance.
Refer to i-MiEV owner’s manual for more details.
