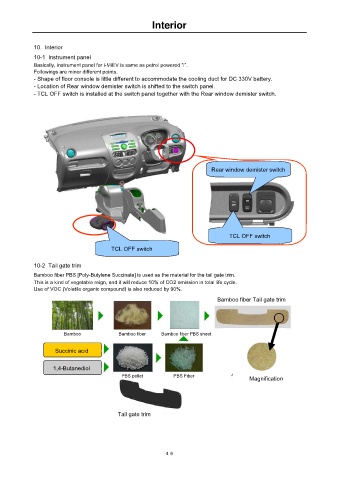

Interior

10. Interior
10-1 Instrument panel
Basically, instrument panel for i-MiEV is same as petrol powered “i”.
Followings are minor different points.
- Shape of floor console is little different to accommodate the cooling duct for DC 330V battery.
- Location of Rear window demister switch is shifted to the switch panel.
- TCL OFF switch is installed at the switch panel together with the Rear window demister switch.

Rear window demister switch

TCL OFF switch

TCL OFF switch

10-2 Tail gate trim

Bamboo fiber PBS [Poly-Butylene Succinate] is used as the material for the tail gate trim.
This is a kind of vegetable reign, and it will reduce 10% of CO2 emission in total life cycle.
Use of VOC (Volatile organic compound) is also reduced by 90%.

Bamboo fiber Tail gate trim

Bamboo Bamboo fiber Bamboo fiber PBS sheet

Succinic acid

1,4-Butanediol
PBS pellet PBS Fiber
Magnification

Tail gate trim

４６
