Maintenance

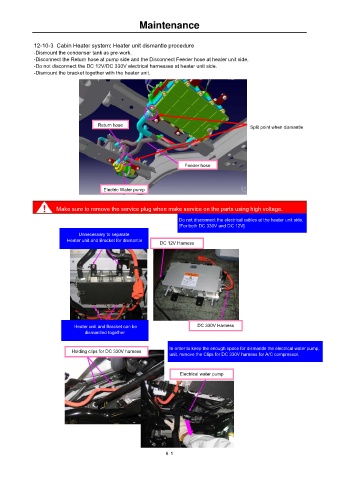

12-10-3 Cabin Heater system: Heater unit dismantle procedure
-Dismount the condenser tank as pre-work.
-Disconnect the Return hose at pump side and the Disconnect Feeder hose at heater unit side.
-Do not disconnect the DC 12V/DC 330V electrical harnesses at heater unit side.
-Dismount the bracket together with the heater unit.

Return hose Split point when dismantle

Feeder hose

Electric Water pump

Make sure to remove the service plug when make service on the parts using high voltage.

Do not disconnect the electrical cables at the heater unit side.
[For both DC 330V and DC 12V]
Unnecessary to separate
Heater unit and Bracket for dismantle
DC 12V Harness

Heater unit and Bracket can be DC 330V Harness
dismantled together

In order to keep the enough space for dismantle the electrical water pump,
Holding clips for DC 330V harness
unit, remove the Clips for DC 330V harness for A/C compressor.

Electrical water pump
