Maintenance

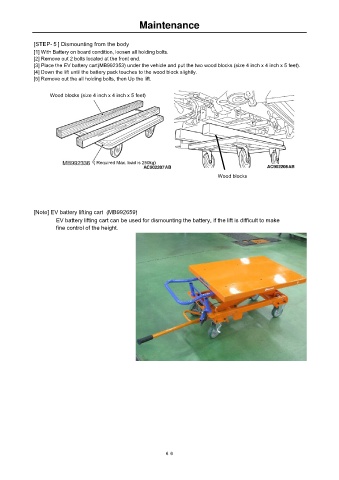

[STEP-５] Dismounting from the body
[1] With Battery on board condition, loosen all holding bolts.
[2] Remove out 2 bolts located at the front end.
[3] Place the EV battery cart(MB992353) under the vehicle and put the two wood blocks (size 4 inch x 4 inch x 5 feet).
[4] Down the lift until the battery pack touches to the wood block slightly.
[5] Remove out the all holding bolts, then Up the lift.

Wood blocks (size 4 inch x 4 inch x 5 feet)

（Required Max. load is 250kg)

Wood blocks

[Note] EV battery lifting cart (MB992659)
fine control of the height.
EV battery lifting cart can be used for dismounting the battery, if the lift is difficult to make

６６
