Maintenance

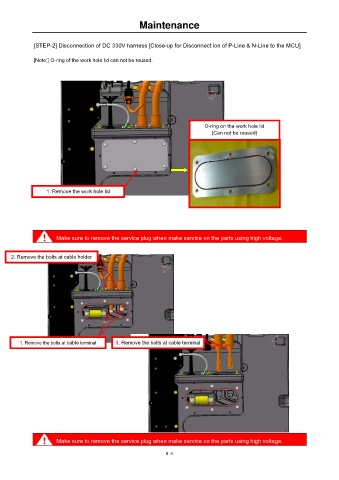

[STEP-2] Disconnection of DC 330V harness [Close-up for Disconnect ion of P-Line & N-Line to the MCU]
[Note:] O-ring of the work hole lid can not be reused.
O-ring on the work hole lid
(Can not be reused)
1. Remove the work hole lid
Make sure to remove the service plug when make service on the parts using high voltage.
2. Remove the bolts at cable holder
1. Remove the bolts at cable terminal 3. Remove the bolts at cable terminal
Make sure to remove the service plug when make service on the parts using high voltage.
