Maintenance

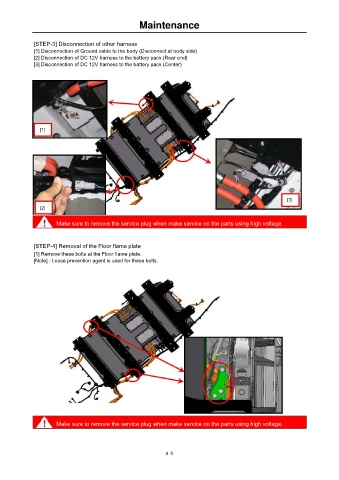

[STEP-3] Disconnection of other harness
[1] Disconnection of Ground cable to the body (Disconnect at body side)
[2] Disconnection of DC 12V harness to the battery pack (Rear end)
[3] Disconnection of DC 12V harness to the battery pack (Center)

[1]

[3]
[2]

Make sure to remove the service plug when make service on the parts using high voltage.

[STEP-4] Removal of the Floor flame plate
[1] Remove these bolts at the Floor flame plate.
[Note] : Loose prevention agent is used for these bolts.

Make sure to remove the service plug when make service on the parts using high voltage.
