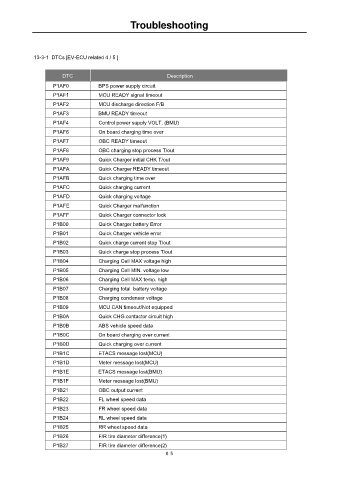

Troubleshooting

13-3-1 DTCs [EV-ECU related 4 / 5 ]

DTC Description
P1AF0 BPS power supply circuit
P1AF1 MCU READY signal timeout
P1AF2 MCU discharge direction F/B
P1AF3 BMU READY timeout
P1AF4 Control power supply VOLT. (BMU)
P1AF6 On board charging time over
P1AF7 OBC READY timeout
P1AF8 OBC charging stop process T/out
P1AF9 Quick Charger initial CHK T/out
P1AFA Quick Charger READY timeout
P1AFB Quick charging time over
P1AFC Quick charging current
P1AFD Quick charging voltage
P1AFE Quick Charger malfunction
P1AFF Quick Charger connector lock
P1B00 Quick Charger battery Error
P1B01 Quick Charger vehicle error
P1B02 Quick charge current stop T/out
P1B03 Quick charge stop process T/out
P1B04 Charging Cell MAX voltage high
P1B05 Charging Cell MIN. voltage low
P1B06 Charging Cell MAX temp. high
P1B07 Charging total battery voltage
P1B08 Charging condenser voltage
P1B09 MCU CAN timeout/Not equipped

P1B0A Quick CHG.contactor circuit high
P1B0B ABS vehicle speed data
P1B0C On board charging over current
P1B0D Quick charging over current
P1B1C ETACS message lost(MCU)
P1B1D Meter message lost(MCU)
P1B1E ETACS message lost(BMU)
P1B1F Meter message lost(BMU)
P1B21 OBC output current
P1B22 FL wheel speed data
P1B23 FR wheel speed data
P1B24 RL wheel speed data
P1B25 RR wheel speed data
P1B26 F/R tire diameter difference(1)
P1B27 F/R tire diameter difference(2)
