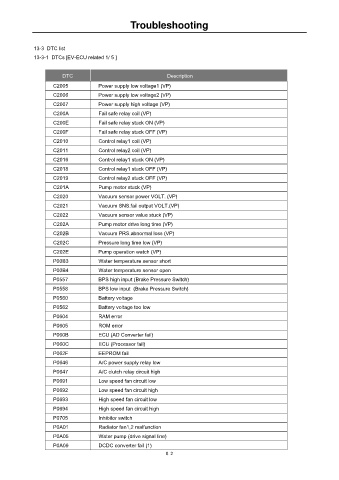

Page 77 - i-MeIV Product Information

Troubleshooting

13-3 DTC list
13-3-1 DTCs [EV-ECU related 1/ 5 ]

DTC Description
C2005 Power supply low voltage1 (VP)
C2006 Power supply low voltage2 (VP)
C2007 Power supply high voltage (VP)
C200A Fail safe relay coil (VP)
C200E Fail safe relay stuck ON (VP)
C200F Fail safe relay stuck OFF (VP)
C2010 Control relay1 coil (VP)
C2011 Control relay2 coil (VP)
C2016 Control relay1 stuck ON (VP)
C2018 Control relay1 stuck OFF (VP)
C2019 Control relay2 stuck OFF (VP)
C201A Pump motor stuck (VP)
C2020 Vacuum sensor power VOLT. (VP)
C2021 Vacuum SNS.fail output VOLT.(VP)
C2022 Vacuum sensor value stuck (VP)
C202A Pump motor drive long time (VP)
C202B Vacuum PRS.abnormal loss (VP)
C202C Pressure long time low (VP)
C202E Pump operation watch (VP)
P00B3 Water temperature sensor short
P00B4 Water temperature sensor open
P0557 BPS high input (Brake Pressure Switch)
P0558 BPS low input (Brake Pressure Switch)
P0560 Battery voltage
P0562 Battery voltage too low

P0604 RAM error
P0605 ROM error
P060B ECU (AD Converter fail)
P060C ECU (Processor fail)
P062F EEPROM fail
P0646 A/C power supply relay low
P0647 A/C clutch relay circuit high
P0691 Low speed fan circuit low
P0692 Low speed fan circuit high
P0693 High speed fan circuit low
P0694 High speed fan circuit high
P0705 Inhibitor switch
P0A01 Radiator fan1,2 malfunction
P0A05 Water pump (drive signal line)
P0A09 DCDC converter fail (1)
８２
