Troubleshooting

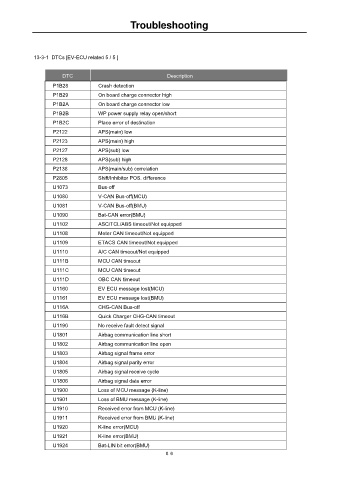

13-3-1 DTCs [EV-ECU related 5 / 5 ]

DTC Description
P1B28 Crash detection
P1B29 On board charge connector high
P1B2A On board charge connector low
P1B2B WP power supply relay open/short
P1B2C Place error of destination
P2122 APS(main) low
P2123 APS(main) high
P2127 APS(sub) low
P2128 APS(sub) high
P2138 APS(main/sub) correlation
P2805 Shift/Inhibitor POS. difference
U1073 Bus-off
U1080 V-CAN Bus-off(MCU)
U1081 V-CAN Bus-off(BMU)
U1090 Bat-CAN error(BMU)
U1102 ASC/TCL/ABS timeout/Not equipped
U1108 Meter CAN timeout/Not equipped
U1109 ETACS CAN timeout/Not equipped
U1110 A/C CAN timeout/Not equipped
U111B MCU CAN timeout
U111C MCU CAN timeout
U111D OBC CAN timeout
U1160 EV ECU message lost(MCU)
U1161 EV ECU message lost(BMU)
U116A CHG-CAN Bus-off
U116B Quick Charger CHG-CAN timeout
U1190 No receive fault detect signal

U1801 Airbag communication line short
U1802 Airbag communication line open
U1803 Airbag signal frame error
U1804 Airbag signal parity error
U1805 Airbag signal receive cycle
U1806 Airbag signal data error
U1900 Loss of MCU message (K-line)
U1901 Loss of BMU message (K-line)
U1910 Received error from MCU (K-line)
U1911 Received error from BMU (K-line)
U1920 K-line error(MCU)
U1921 K-line error(BMU)
U1924 Bat-LIN bit error(BMU)
