Example3.4
Symmetrically arranged piles:
Determine the force on the piles shown in figure 3.25. The inclination on the raking piles
is 5:2, the vertical load, Q =3600 kN the horizontal load, H =200 kN and is located 0.6 m
from pile cutting level.
© It's Engg. Life

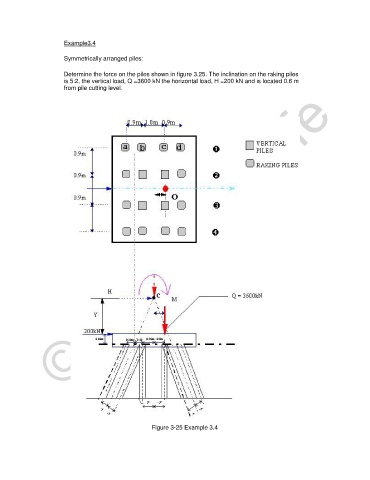

Figure 3-25 Example 3.4
