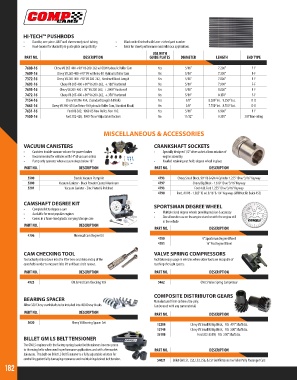

Page 182 - 2018 Master Catalog

HI-TECH™ PUSHRODS
• Durable, one-piece .080” wall chromemoly steel tubing • Black oxide finished with laser-etched part number
• Heat-treated for durability & guide plate compatibility • Ideal for street performance and mild race applications
USE WITH
PART NO. DESCRIPTION GUIDE PLATES DIAMETER LENGTH END TYPE

7608-16 Chevy V8 265-400 +90° V6 200-262 w/ OEM Hydraulic Roller Cam Yes 5/16” 7.200” F-F
7609-16 Chevy V8 265-400 +90° V6 w/ Retro-Fit Hydraulic Roller Cam Yes 5/16” 7.300” F-F
7372-16 Chevy V8 265-400 +90° V6 200-262, Hardened Stock Length Yes 5/16” 7.800” F-F
7693-16 Chevy V8 265-400 +90° V6 200-262, +.100” Hardened Yes 5/16” 7.900” F-F
7695-16 Chevy V8 265-400 +90° V6 200-262, +.2000” Hardened Yes 5/16” 8.000” F-F
7472-16 Chevy V8 265-400 +90° V6 200-262, +.350” Hardened Yes 5/16” 8.150” F-F
7154-16 Chevy V8 396-454, (Standard Length & Block) Yes 3/8” 8.280” Int. 9.250” Ext. D-D
7663-16 Chevy V8 396-454 (w/Retro-Fit Hydraulic Roller Cam, Standard Block) Yes 3/8” 7.750” Int. 8.700” Ext. D-D
7631-16 Ford V8 302, 1969-85 Non-Roller, Non-H.O. Yes 5/16” 6.900” F-F
7530-16 Ford 352-428, 1965-76 w/ Adjustable Rockers No 11/32” 9.350” 3/8” Non-oiling

MISCELLANEOUS & ACCESSORIES

VACUUM CANISTERS CRANKSHAFT SOCKETS
• Canisters double vacuum volume for power brakes • Specially designed 1/2” drive socket allows rotation of
• Recommended for vehicles with 14” of vacuum or less engine assembly
• Pump only operates when vacuum drops below 18” • Knurled retaining nut holds degree wheel in place
PART NO. DESCRIPTION PART NO. DESCRIPTION

5500 Electric Vacuum Pump Kit 4793 Chevy Small Block, 90° V6 & GM 4-Cylinder 1.255” ID w/ 3/16” Keyway
5200 Vacuum Canister - Black Powder Coated Aluminum 4797 Chevy Big Block - 1.610” ID w/ 3/16” Keyway
5201 Vacuum Canister - Zinc Plated & Polished 4793 Ford 4.6L Ford 1.255” ID w/ 3/16” Keyway
4798 Ford, All V8 - 1.385” ID w/ 3/16” & 1/4” Keyways (Will Not Fit Buick 455)

CAMSHAFT DEGREE KIT SPORTSMAN DEGREE WHEEL
• Complete kit to degree a cam
• Available for most popular engines • Multiple sized degree wheels provide precision & accuracy
• Comes in a foam-lined plastic carrying/storage case • Size allows for use on the engine stand or with the engine still
in the vehicle
PART NO. DESCRIPTION
PART NO. DESCRIPTION
4796 Universal Cam Degree Kit
4790 9” Sportsman Degree Wheel
4791 16” Pro Degree Wheel
CAM CHECKING TOOL VALVE SPRING COMPRESSORS
Tool actually slides down into the lifter bore and rides on top of the Facilitates easy usage in vehicles where other tools are incapable of
camshaft in order to measure lobe lift and base circle runout. reaching the tight spaces.
PART NO. DESCRIPTION PART NO. DESCRIPTION

4925 GM & Ford Cam Checking Tool 5462 GM LS Valve Spring Compressor

COMPOSITE DISTRIBUTOR GEARS
BEARING SPACER Manufactured from carbon ultra-poly.
Allow 350 Chevy crankshafts to be installed into 400 Chevy blocks. Can be used with any cam material.
PART NO. DESCRIPTION PART NO. DESCRIPTION
5620 Chevy V8 Bearing Spacer Set 12200 Chevy V8 Small & Big Block, Fits .491” Shaft dia.
12140 Chevy V8 Small & Big Block, Fits .500” Shaft dia.
35100 Ford 302-351W, Fits .530” Shaft dia.
BILLET GM LS BELT TENSIONER
The GM LS engines with the factory spring loaded belt tensioners become prone
to throwing belts when used in performance applications and with aftermarket PART NO. DESCRIPTION
balancers. This bolt-on Billet LS Belt Tensioner is a fully adjustable solution for
controlling potentially damaging resonance and maintaining desired belt tension. 54021 Billet GM LS1, LS2, LS3, LS6, & LS7 Belt Tensioner w/ Idler Pully Passenger Cars
182
