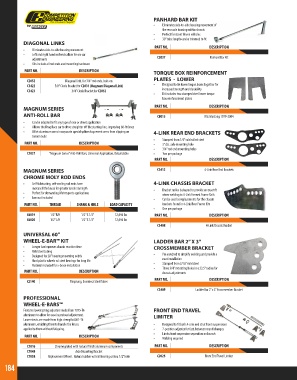

Page 184 - 2018 Master Catalog

PANHARD BAR KIT
• Eliminates side-to-side housing movement of
the rear axle housing within chassis
• Perfect for street driven vehicles
• 30” tube length can be trimmed to fit
DIAGONAL LINKS PART NO. DESCRIPTION
• Eliminates side-to-side housing movement
• Left and right hand rod ends allow for on-car
adjustments C2037 Panhard Bar Kit
• Kits include all rod ends and mounting hardware
PART NO. DESCRIPTION TORQUE BOX REINFORCEMENT
PLATES - LOWER
C2052 Diagonal link, for 3/4” rod ends, bolt-on
C3422 5/8” Clevis Bracket for C2031 (Magnum Diagonal Link) • Designed to tie lower torque boxes together for
C3423 3/4” Clevis Bracket for C2052 increased strength and durability
• Kit includes two stamped steel lower torque
box reinforcement plates
MAGNUM SERIES PART NO. DESCRIPTION
ANTI-ROLL BAR C8015 Fits Mustang 1979-2004
• Can be adapted to fit any type of race or street application
• Allows the Drag Race car to drive straighter off the starting line, improving 60-ft times
• Billet aluminum arms incorporate special splines to prevent arms from slipping on 4-LINK REAR END BRACKETS
torsion tube
• Stamped from 1/4” cold rolled steel
PART NO. DESCRIPTION • 3” dia. axle mounting hole
• 3/4” rod end mounting holes
C2027 “Magnum Series” Anti-Roll Bars, Universal Application, Rebuildable • Two per package
PART NO. DESCRIPTION

MAGNUM SERIES C3412 4-Link Rear End Brackets
CHROME MOLY ROD ENDS
• Self-lubricating, self-sealing rod ends have 4-LINK CHASSIS BRACKET
increased thickness for greater tensile strength • Bracket radius is shaped to provide an exact fit
• Perfect for demanding Motorsports applications when welding to 4-Link Formed Frame Rails
• Jam nut included • Can be used as replacements for the chassis
PART NO. THREAD SHANK & HOLE LOAD CAPACITY brackets found in 4-Link Rear Frame Kits
• One per package
C6019 1/2” R/H 1/2” X 1/2” 12,696 lbs PART NO. DESCRIPTION
C6020 1/2” L/H 1/2” X 1/2” 12,696 lbs
C3408 4-Link Chassis Bracket

UNIVERSAL 60”
WHEEL-E-BAR™ KIT LADDER BAR 2” X 3”
• Longer bar improves chassis reaction time CROSSMEMBER BRACKET
• Mild steel tubing
• Designed for 28” housing mounting width • Pre-notched to simplify welding and provide a
• Hard plastic wheels w/ steel bearings for long life neat installation
• Material included for x-brace installation • • Stamped from 3/16” mild steel
Three 3/4” mounting holes in a 33.5” radius for
PART NO. DESCRIPTION chassis adjustments
PART NO. DESCRIPTION
C2140 Unsprung, Seamless Steel Tubes
C3409 Ladder Bar 2” x 3” Crossmember Bracket
PROFESSIONAL
WHEEL-E-BARS™
Features lower spring adjusters made from 7075-T6 FRONT END TRAVEL
aluminum to allow for ease in preload adjustment. LIMITER
Lower struts are made from high strength 6061-T6
aluminum, enabling them to handle the forces • Designed to fit both A-arm and strut front suspensions
applied to them without fatiguing. • 7-position adjuster for fast, between round changes
• Limits front suspension separation on launch
PART NO. DESCRIPTION
• Welding required
C2016 Chrome plated with natural finish aluminum components PART NO. DESCRIPTION
C7048 Axle Mounting Bracket
C7058 Replacement Wheel. Natural rubber w/ ball bearing center, 1/2” hole C2025 Front End Travel Limiter

184
