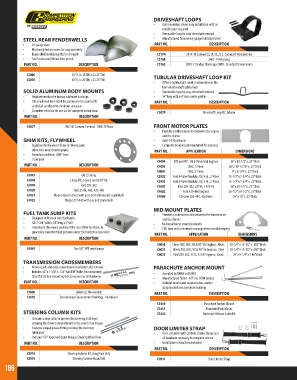

Page 186 - 2018 Master Catalog

DRIVESHAFT LOOPS
• Bolt-on design allows easy installation with no
modification required
• Removable loop for easy driveshaft removal
STEEL REAR FENDERWELLS • Manufactured from heavy-gauge fabricated steel
• 24-gauge steel PART NO. DESCRIPTION
• Pittsburgh locking seam for easy assembly
• Bead rolled reinforcing ribs for strength C3174 2010-14 Camaro LS, LT, SS, ZL1; Standard Transmission
• Two Fenderwell/Wheel Tubs per kit C3160 2005-14 Mustang
PART NO. DESCRIPTION C3162 2009-11 Dodge Challenger SRT8; Standard Transmission

C3006 36” (L) x 18”(H) x 23.25”(W) TUBULAR DRIVESHAFT LOOP KIT
C3010 40” (L) x 20”(H) x 23.25”(W)
• Offers a lightweight, weld-in alternative to the
bolt-on driveshaft safety loop
SOLID ALUMINUM BODY MOUNTS • Removable loop for easy driveshaft removal
• Replacement for the factory subframe bushings • 54” long with a 4” drop center profile
• CNC machined from 6061-T6 aluminum for a perfect fit PART NO. DESCRIPTION
and black anodized to eliminate corrosion
• Complete set of six for one car w/ complete instructions C3029 Driveshaft Loop Kit, Tubular
PART NO. DESCRIPTION

C3027 1967-81 Camaro, Firebird; 1968-79 Nova FRONT MOTOR PLATES
• Provides a solid connection between the engine
and the chassis
SHIM KITS, FLYWHEEL • 6061-T6 Aluminum
• Replacement flywheel shims for Moroso and • Computer designed and machined for accuracy
other mid-mount motor plates PART NO. APPLICATION DIMENSIONS
• Manufactured from .090” Steel
• 3 per pack C4004 SBC and 90°, V6 2-Piece Seal Engines 36” x 10-1/2” x .25” thick
PART NO. DESCRIPTION C4005 BBC, 1-Piece 36” x 10-15/16” x .25” thick
C4007 BBC, 2-Piece 9” x 8-1/4” x .25” thick
C4047 GM LS Series C3992 Ford 4-Valve Modular, V8, 4.6L, 2-Piece 15-1/2” x 7-3/4” x .25” thick
C4048 Chevy V8, 2-piece seal & 90° V6 C3993 Ford 4-Valve Modular, V8, 5.4L, 2-Piece 15-1/2” x 7-3/4” x .25” thick
C4049 Ford 289-302 C4001 Ford 289-302, 351W; 1970-93 36” x 10-1/2” x .25” thick
C4050 Ford 351M, 400, 429, 460 C4002 Ford 429-460 Engines 36-1/2” x 9-1/2” x .25” thick
C4051 Mopar 426 or others with an 8-bolt aftermarket crankshaft C4009 Chrysler 383-440, 426 Hemi 36” x 10” x .25” thick
C4052 Mopar 273-440 with a 6-bolt crankshaft
MID MOUNT PLATES
FUEL TANK SUMP KITS • Provides a solid connection between the transmission
• Designed to fit stock steel fuel tanks and the chassis
• I.D. 7-3/4” wide x 11” long x 3” tall • Universal frame mounts included
• Installed in the lowest portion of the rear of the fuel tank, to • CNC laser cut to eliminate warpage from metal stamping
guarantee consistent fuel pressure under the hardest acceleration PART NO. APPLICATION DIMENSIONS
PART NO. DESCRIPTION
C4030 Chevy SBC, BBC, V8 & 90° V6 Engines; Alum. 29-1/4” x 13-1/2” x .188” thick
C4041 Two 1/2” NPT weld bungs C4031 Chevy SBC, BBC, V8 & 90° V6 Engines; Steel 29-1/4” x 13-1/2” x .090” thick
C4053 Ford 289-302, 351C, 351W Engines; Alum. 30” x 9-1/4” x 1.88” thick
TRANSMISSION CROSSMEMBERS
• Allows quick and easy transmission installation and removal PARACHUTE ANCHOR MOUNT
• Includes 42” x 1-5/8” x .134” wall EWT tube, four mounting • Accepted by NHRA and IHRA
tabs (flat) & four mounting tabs (concave) w/ all hardware • Manufactured from 1-5/8” dia. DOM tubing
PART NO. DESCRIPTION • Includes mount and support tubes, anchor
strap bracket and aluminum bushing
C3600 Universal, Un-welded PART NO. DESCRIPTION
C3610 Transmission Crossmember Bushings, Aluminum
C3450 Parachute Anchor Mount
C3451 Parachute Pack Mount
STEERING COLUMN KITS C3452 Parachute Release Cable Kit
• Contains a stop collar to prevent the steering shaft from
entering the driver’s compartment in the event of an impact
• Features unique grease fittings to keep the bushings DOOR LIMITER STRAP
lubricated • Kit is complete with (2) Door Limiter Straps and
• Includes “SFI” Approved Quick Release Steering Wheel Hub all hardware necessary to complete one car
PART NO. DESCRIPTION • Installation instructions included
PART NO. DESCRIPTION
C5074 Steering Column Kit, Drag Race Only
C5076 Steering Column Mount Kit C4931 Door Limiter Strap
186
