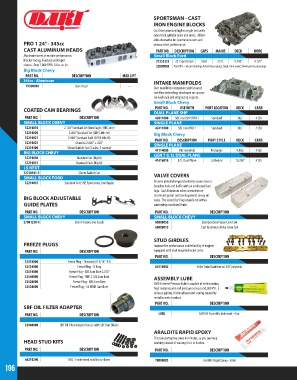

Page 196 - 2018 Master Catalog

SPORTSMAN - CAST
IRON ENGINE BLOCKS
Cast from premium high strength Iron with
extra thick cylinder walls and decks. Afford-
able alternative for Sportsman racers and
PRO 1 24° - 345cc serious street performance.
CAST ALUMINUM HEADS PART NO. DESCRIPTION CAPS MAINS DECK BORE
Maximum street or marine performance, Small Block Ford
bracket racing, heads up and super 31355235 351 Sportsman Steel 351C 9.500” 4.125”
classes. Over 7,000 RPM, 540+ cu. in. 32000003 Parts Kit - ctd cam bearings, brass freeze plugs, head, front cover, dowel pins & pipe plugs
Big Block Chevy
PART NO. DESCRIPTION MAX LIFT
345cc - Aluminum INTAKE MANIFOLDS
19300030 Bare Head --- Dart manifolds incorporate sophisticated
wet flow technology developed on success-
ful oval track and drag racing engines.
Small Block Chevy
USE WITH
PART NO.
COATED CAM BEARINGS DUAL PLANE SHP PORT LOCATION DECK CARB
PART NO. DESCRIPTION 42811000 SBC Iron/SHP/PRO 1 Standard Std. 4150
SMALL BLOCK CHEVY SINGLE PLANE
32210010 2.120” Standard Set (Iron Eagle / BBC core) 42411000 SBC Iron/PRO 1 Standard Std. 4150
32210020 2.000” Standard Set (SHP, Little M) Big Block Chevy
32210021 2.000” Standard Each (SHP, Little M) PART NO. DESCRIPTION PORT STYLE DECK CARB
32210023 Oversize 2.000” +.020” SINGLE PLANE
32210100 55mm Babbitt Set (2 wide, 3 narrow)
BBC Manifold
41114000
BIG BLOCK CHEVY GEN 7 8.1L DUAL PLANE Rectangle 9.800 4150
32210030 Standard Set (Big M) 41616010 8.1L Dual Plane Cathedral 10.236” 4150
32210031 Standard Each (Big M)
LS NEXT
32210101-5 55mm Babbitt Set
SMALL BLOCK FORD VALVE COVERS
32210041 Standard Set (SHP, Sportsman, Iron Eagle) Chrome plated stamped steel valve covers have a
breather hole and baffle with an embossed Dart
logo. Cast Aluminum valve covers feature
BIG BLOCK ADJUSTABLE machined gasket surfaces to prevent messy oil
leaks. The raised Dart logo stands out with a
GUIDE PLATES contrasting machined finish.
PART NO. DESCRIPTION PART NO. DESCRIPTION
SMALL BLOCK CHEVY SMALL BLOCK CHEVY
27001230-4 Set of 4 (does one head) 68000050 Stamped Steel Valve Cover Set
68000015 Cast Aluminum Valve Cover Set

STUD GIRDLES
FREEZE PLUGS Improve the performance and reliability of engines
PART NO. DESCRIPTION equipped with stud mounted rocker arms.
PART NO. DESCRIPTION
32310000 Freeze Plug - Threaded (1-5/16” -12)
32410000 Freeze Plug - O Ring 64110002 Valve Train Stabilizer w/ 3/8” polylocks
32510000 Freeze Plug - SBC Cam Bore 2.375”
32540000 Freeze Plug - SHP 2.106 Cam Bore ASSEMBLY LUBE
32520000 Freeze Plug - BBC Cam Bore CMD Extreme Pressure Lube is capable of withstanding
32530000 Freeze Plug - 55 MMR Cam Bore high temperatures and pressures of up to 50,000 PSI. It
reduces galling, frictional heat and scoring caused by
metal to metal contact.
PART NO. DESCRIPTION
SBF OIL FILTER ADAPTER
PART NO. DESCRIPTION LUBE CMD #3 Assembly Lubricant - 4 oz.

32940000 SBF Oil Filter Adapter for use with SBF Dart Blocks
ARALDITE RAPID EPOXY
This two part epoxy cures in minutes, so you can keep
HEAD STUD KITS working instead of waiting for it to harden.
PART NO. DESCRIPTION PART NO. DESCRIPTION

64210240 BBC - Inside head stud kit w/ shoes 70000003 Araldite Rapid Epoxy - 30ml
196
