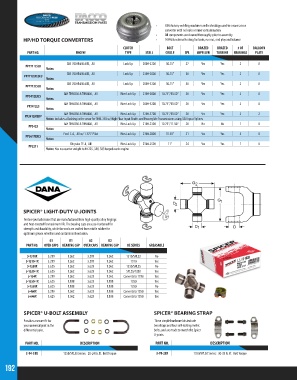

Page 192 - 2018 Master Catalog

• OEM factory welding machines and technology used to ensure a true
converter with no leaks or inner contamination
• All components are cleaned thoroughly prior to assembly
HP/HD TORQUE CONVERTERS • 100% functional testing for leaks, run out, end play and balance

CLUTCH BOLT BRAZED BRAZED # OF BALLOON
PART NO. ENGINE TYPE STALL CIRCLE SPL IMPELLER TURBINE BEARINGS PLATE

GM 700-R4/4L60E, All Lock Up 2800-3200 10.75” 27 Yes Yes 2 0
PP7711LSLU
Notes:
GM 700-R4/4L60E, All Lock Up 2300-2800 10.75” 30 Yes Yes 2 0
PP7712EXLSLU
Notes:
GM 700-R4/4L60E, All Lock Up 2800-3200 10.75” 30 Yes Yes 2 0
PP7712LSLU
Notes:
GM THM350 & THM400, All Non-Lock Up 2300-2800 10.75”/11.50” 30 Yes Yes 3 0
PP3412EXLS
Notes:
GM THM350 & THM400, All Non-Lock Up 2800-3200 10.75”/11.50” 30 Yes Yes 3 0
PP3412LS
Notes:
GM THM350 & THM400, All Non-Lock Up 3200-3700 10.75”/11.50” 30 Yes Yes 3 2
PP3412MSBP
Notes: Includes a Bushing in the cover for THM-350 w/ High Flow Input Shafts and Powerglide Transmissions using 350 Input Splines
GM THM350 & THM400, All Non-Lock Up 2100-2300 10.75”/11.50? 30 No No 1 0
PP3423
Notes:
Ford C-6, All w/ 1.375” Pilot Non-Lock Up 2300-2800 11.50” 31 Yes Yes 3 0
PP3617EXLS
Notes:
Chrysler TF-8, All Non-Lock Up 2300-2500 11” 24 Yes Yes 1 0
PP2211
Notes: Has no counter weight to fit 225, 318, 383 forged crank engine

SPICER® LIGHT-DUTY U-JOINTS
Feature journal crosses that are manufactured from high-quality alloy forgings
and heat-treated for maximum life. The bearing cups are case-hardened for
strength and durability, while the seals are crafted from nitrile rubber for
optimum grease retention and contaminant exclusion.
G1 D1 G2 D2
PART NO. OVER CAPS BEARING CAP OVER CAPS BEARING CAP OE SERIES GREASABLE

5-1310X 3.219 1.062 3.219 1.062 1310/SPL22 No
5-1310-1X 3.219 1.062 3.219 1.062 1310 Yes
5-1330X 3.625 1.062 3.625 1.062 1330/SPL25 No
5-1330-1X 3.625 1.062 3.625 1.062 SPL25/1330 Yes
5-134X 3.219 1.062 3.625 1.062 Converts to 1330 Yes
5-1350-1X 3.625 1.188 3.625 1.188 1350 Yes
5-1350X 3.625 1.188 3.625 1.188 1350 No
5-460X 3.219 1.062 3.625 1.188 Converts to 1350 Yes
5-648X 3.625 1.062 3.625 1.188 Converts to 1350 Yes

SPICER® U-BOLT ASSEMBLY SPICER® BEARING STRAP
Provides a secure fit for These simple hardware kits include
your universal joint in the two straps and four self-locking metric
differential yoke. bolts, and are made to match the Spicer
U-joints.
PART NO. DESCRIPTION PART NO. DESCRIPTION
3-94-18X 1350/SPL30 Series; 20-24 lb. ft. Bolt Torque 3-70-28X 1350/SPL30 Series; 30-35 lb. ft. Bolt Torque

192
