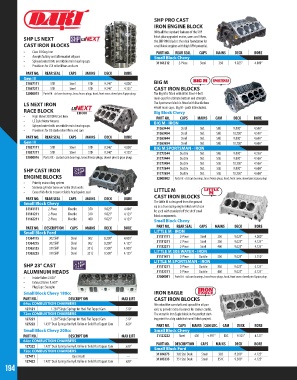

Page 194 - 2018 Master Catalog

SHP PRO CAST
IRON ENGINE BLOCK
With all the standard features of the SHP
SHP LS NEXT block plus upgraded mains, cams and lifters,
the SHP PRO block is the ideal foundation for
CAST IRON BLOCKS small block engines with high RPM potential.
• Class 30 Grey Iron PART NO. REAR SEAL CAPS MAINS DECK BORE
• Accepts factory and aftermarket oil pans Small Block Chevy
• Splayed outer bolts on middle main bearing caps 31161212 2-Piece Steel 350 9.025” 4.000”
• Provisions for LSX roller lifters and cam
PART NO. REAR SEAL CAPS MAINS DECK BORE
Gen III
31867111 STD Steel STD 9.240” 4.000” BIG M
31867211 STD Steel STD 9.240” 4.125” CAST IRON BLOCKS
32000013 Parts Kit - ctd cam bearings, brass freeze plugs, head, front cover, dowel pins & pipe plugs The Big M is fitted with Billet Steel 4-bolt
main caps for ultimate bottom end strength.
LS NEXT IRON The Sportsman block is fitted with Ductile Iron
4-bolt main caps. Big M - parts kit included.
RACE BLOCK Big Block Chevy
• High Nickel 220 BHN Cast Iron PART NO. CAPS MAINS CAM DECK BORE
• LS Style Motor Mounts BIG M - IRON
• Splayed outer bolts on middle main bearing caps
• Provisions for OE stock roller lifters and cam 31263444 Steel Std. Std. 9.800” 4.500”
31263454 Steel Std. Std. 10.200” 4.500”
PART NO. REAR SEAL CAPS MAINS DECK BORE 31263644 Steel Std. Std. 9.800” 4.600”
Gen III 31263654 Steel Std. Std. 10.200” 4.600”
31837111 STD Steel STD 9.240” 4.000” BIG M SPORTSMAN - IRON
31837211 STD Steel STD 9.240” 4.125” 31273344 Ductile Std. Std. 9.800” 4.250”
32000016 Parts Kit - coated cam bearings, brass freeze plugs, dowel pins & pipe plugs 31273444 Ductile Std. Std. 9.800” 4.500”
31273454 Ductile Std. Std. 10.200” 4.500”
9.800”
SHP CAST IRON 31273644 Ductile Std. Std. 10.200” 4.600”
Ductile
Std.
Std.
31273654
4.600”
ENGINE BLOCKS 32000002 Parts Kit - ctd cam bearings, brass freeze plugs, head, front cover, dowel pins & pipe plugs
• Priority main oiling system
• Siamese cylinder bores w/ extra thick walls LITTLE M
• Extra thick decks ensure reliable head gasket seal
PART NO. REAR SEAL CAPS MAINS DECK BORE CAST IRON BLOCKS
Small Block Chevy The Little M is designed from the ground
31161111 2-Piece Ductile 350 9.025” 4.000” up as a true racing engine block which can
be used with standard off the shelf small
31161211 2-Piece Ductile 350 9.025” 4.125” block components.
31162211 2-Piece Ductile 400 9.025” 4.125”
Small Block Chevy
PART NO. DESCRIPTION CAPS MAINS DECK BORE PART NO. REAR SEAL CAPS MAINS DECK BORE
Small Block Ford LITTLE M - IRON
31364175 302 SHP Steel 302 8.200” 4.000” 31131111 2-Piece Steel 350 9.025” 4.000”
31364275 302 SHP Steel 302 8.200” 4.125” 31131211 2-Piece Steel 350 9.025” 4.125”
31365135 351 SHP Steel 351C 9.500” 4.000” 31132211 2-Piece Steel 400 9.025” 4.125”
31365235 351 SHP Steel 351C 9.500” 4.125” LITTLE M 305 WATER - IRON
31151411 2-Piece Ductile 350 9.025” 3.750”
LITTLE M SPORTSMAN - IRON
SHP 23° CAST 31151211 2-Piece Ductile 350 9.025” 4.125”
ALUMINUM HEADS 31152211 2-Piece Ductile 400 9.025” 4.125”
• Intake Valve: 2.020” 32000001 Parts Kit - ctd cam bearings, brass freeze plugs, head, front cover, dowel pins & pipe plugs
• Exhaust Valve: 1.600”
• Plug Type: Straight
Small Block Chevy 180cc IRON EAGLE
PART NO. DESCRIPTION MAX LIFT CAST IRON BLOCKS
64cc COMBUSTION CHAMBERS We raised the camshaft and spread the oil pan
127121 1.250” Single Springs for Hyd. Flat Tappet Cam .510” rails to provide extra clearance for stroker cranks.
72cc COMBUSTION CHAMBERS The versatile Iron Eagle block in the perfect start-
127221 1.250” Single Springs for Hyd. Flat Tappet Cam .510” ing point for a big cubic inch small block project.
127222 1.437” Dual Springs for Hyd. Roller or Solid Flat Tappet Cam .620” PART NO. CAPS MAINS CAM LOC. CAM DECK BORE
Small Block Chevy 200cc Small Block Chevy
PART NO. DESCRIPTION MAX LIFT 31122222 Steel 400 +.391” BBC 9.325” 4.125”
64cc COMBUSTION CHAMBERS
DESCRIPTION
PART NO.
127322 1.437” Dual Springs for Hyd. Roller or Solid Flat Tappet Cam .620” Small Block Ford CAPS MAINS DECK BORE
72cc COMBUSTION CHAMBERS
127411 Bare Head --- 31384275 302 Std. Deck Steel 302 8.200” 4.125”
127422 1.437” Dual Springs for Hyd. Roller or Solid Flat Tappet Cam .620” 31385235 351 Std. Deck Steel 351C 9.500” 4.125”
194
