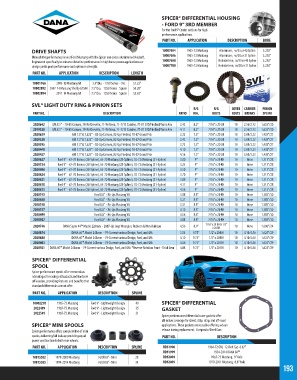

Page 193 - 2018 Master Catalog

SPICER® DIFFERENTIAL HOUSING
- FORD 9” 3RD MEMBER
For the Ford 9” Center sections for high
performance applications.
PART NO. APPLICATION DESCRIPTION BORE
DRIVE SHAFTS 10007694 1965-73 Mustang Aluminum; w/35 or 40 Spline 3.250”
Unleash the performance in your Ford Mustang with the Spicer one-piece aluminum driveshaft. 10007696 1965-73 Mustang Aluminum; w/28 or 31 Spline 3.250”
Engineered specifically to enhance driveline performance in high horse power applications our 10007698 1965-73 Mustang Nodular Iron; w/35 or 40 Spline 3.250”
design yields peak performance and optimum strength. 10007700 1965-73 Mustang Nodular Iron; w/28 or 31 Spline 3.250”
PART NO. APPLICATION DESCRIPTION LENGTH

10001766 2005-10 Mustang GT 3.5” Dia. - 1350 Series - SVL 51.22”
10002092 2007-14 Mustang Shelby GT500 3.5” Dia. - 1350 Series - Spicer 50.28”
10002094 2011-14 Mustang GT 3.5” Dia. - 1350 Series - Spicer 55.03”

SVL® LIGHT DUTY RING & PINION SETS
R/G R/G COVER CARRIER PINION
PART NO. DESCRIPTION RATIO DIA. BOLTS BOLTS BREAKS SPLINE

2020642 GM 8.5” - 70-81 Camaro, 70-96 Chevelle, 71-96 Nova, 71-77 El Camino, 70-81 GTO/Firebird/Trans Am 3.42 8.5” 7/16” x 20 LH 10 2.56/2.73 1.625”/30
2019328 GM 8.5” - 70-81 Camaro, 70-96 Chevelle, 71-96 Nova, 71-77 El Camino, 70-81 GTO/Firebird/Trans Am 4.11 8.5” 7/16” x 20 LH 10 2.56/2.73 1.625”/30
2020639 GM 7.5” & 7.625” - 82-Up Camaro, 82-Up Firebird, 78-87 Grand Prix 3.23 7.5” 7/16” x 20 LH 10 3.08/3.23 1.438”/27
2020520 GM 7.5” & 7.625” - 82-Up Camaro, 82-Up Firebird, 78-87 Grand Prix 3.42 7.5” 7/16” x 20 LH 10 3.08/3.23 1.438”/27
2020395 GM 7.5” & 7.625” - 82-Up Camaro, 82-Up Firebird, 78-87 Grand Prix 3.73 7.5” 7/16” x 20 LH 10 3.08/3.23 1.438”/27
2020440 GM 7.5” & 7.625” - 82-Up Camaro, 82-Up Firebird, 78-87 Grand Prix 4.10 7.5” 7/16” x 20 LH 10 3.08/3.23 1.438”/27
2020437 GM 7.5” & 7.625” - 82-Up Camaro, 82-Up Firebird, 78-87 Grand Prix 4.56 7.5” 7/16” x 20 LH 10 3.08/3.23 1.438”/27
2020627 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 3.00 9” 7/16” x 20 RH 10 None 1.313”/28
2020734 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 3.25 9” 7/16” x 20 RH 10 None 1.313”/28
2020496 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 3.50 9” 7/16” x 20 RH 10 None 1.313”/28
2020624 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 3.70 9” 7/16” x 20 RH 10 None 1.313”/28
2020621 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 3.89 9” 7/16” x 20 RH 10 None 1.313”/28
2020618 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 4.11 9” 7/16” x 20 RH 10 None 1.313”/28
2020615 Ford 9” - 67-70 Bronco (28-Spline), 65-70 Mustang (28-Spline), 70-73 Mustang (31-Spline) 4.56 9” 7/16” x 20 RH 10 None 1.313”/28
2020743 Ford 8.8” - 86-Up Mustang V8 3.08 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020630 Ford 8.8” - 86-Up Mustang V8 3.27 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020740 Ford 8.8” - 86-Up Mustang V8 3.31 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020737 Ford 8.8” - 86-Up Mustang V8 4.10 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020499 Ford 8.8” - 86-Up Mustang V8 4.56 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020502 Ford 8.8” - 86-Up Mustang V8 4.88 8.8” 7/16” x 20 RH 10 None 1.383”/30
2020746 DANA Super 44™ Model 226mm - 2007-Up Jeep Wrangler, Rubicon & Non-Rubicon 4.56 8.9” 7/16” x 20 RH & 1/2” 10 None 1.600”/24
x 20 RH
2020874 DANA 60™ Model 248mm - 79-Current various Dodge, Ford, and GM 3.54 9.75” 1/2” x 20 RH 10 4.10/4.56 1.625”/29
2020880 DANA 60™ Model 248mm - 79-Current various Dodge, Ford, and GM 4.10 9.75” 1/2” x 20 RH 10 4.10/4.56 1.625”/29
2020603 DANA 60™ Model 248mm - 79-Current various Dodge, Ford, and GM 4.56 9.75” 1/2” x 20 RH 10 4.10/4.56 1.625”/29
2020921 DANA 60™ Model 248mm - 79-Current various Dodge, Ford, and GM *Reverse Rotation Front - Thick Gear 4.88 9.75” 1/2” x 20 RH 10 4.10/4.56 1.625”/29

SPICER® DIFFERENTIAL
SPOOL
Spicer performance spools offer tremendous
advantages for racing enthusiasts and hardcore
off-roaders, providing features and benefits that
standard differentials cannot offer.
PART NO. APPLICATION DESCRIPTION SPLINE
10002218 1965-73 Mustang Ford 9” - Lightweight Design 40 SPICER® DIFFERENTIAL
2022499 1965-73 Mustang Ford 9” - Lightweight Design 35 GASKET
2022501 1965-73 Mustang Ford 9” - Lightweight Design 31
Spicer performance differential cover gaskets offer
all-makes coverage for street, strip, drag, and off-road
SPICER® MINI SPOOLS applications. These gaskets are reusable offering a clean
Spicer performance offers complete line of mini release during replacement. Composite/Steel Core.
spools, delivering full lock-up providing equal PART NO. DESCRIPTION
power and traction to both rear wheels.
PART NO. APPLICATION DESCRIPTION SPLINE RD51996 1964-72 GM, 12-Bolt Car, 8.87”
RD51999 1954-2014 DANA 60™
10015382 1979-2009 Mustang Ford 8.8” - Mini 28 RD52004 1965-73 Mustang, 9” Axle
10015385 1994-2014 Mustang Ford 8.8” - Mini 31 RD52005 1979-2011 Mustang, 8.8” Axle
193
