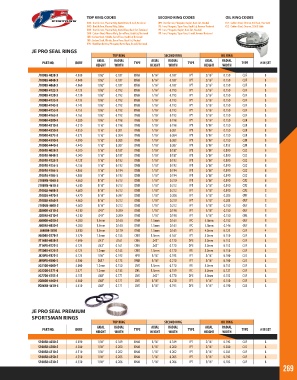

Page 269 - 2018 Master Catalog

TOP RING CODES SECOND RING CODES OIL RING CODES
DMB : Ductile Iron, Plasma Moly, Barrel Face, D-wall, Torsional DPE : Ductile Iron, Phospate, Napier, Back Cut, Neutral CUF : Carbon Steel, Chrome, Full Seal, Flex Vent
DMD : Ductile Iron, Plasma Moly, Dykes IPC : Iron, Phospate, Taper Face, Back Cut, Reverse Torsional CUS : Carbon Steel, Chrome, SS50U Style
DMR : Ductile Iron, Plasma Moly, Barrel Face, Back Cut, Torsional IPE : Iron, Phospate, Napier, Back Cut, Neutral
CMR : Carbon Steel, Plasma Moly, Barrel Face, Back Cut, Torsional IPT : Iron, Phospate, Taper Face, D-wall, Reverse Torsional
CNR : Carbon Steel, Nitride, Barrel Face, Back Cut, Torsional
CNS : Carbon Steel, Nitride, Barrel Face, Back Cut, Neutral
HPB : Hard Ductile Iron, Phospate, Barrel Face, D-wall, Torsional
JE PRO SEAL RINGS
TOP RING SECOND RING OIL RING
AXIAL RADIAL AXIAL RADIAL AXIAL RADIAL
PART NO. BORE TYPE TYPE TYPE # IN SET
HEIGHT WIDTH HEIGHT WIDTH HEIGHT WIDTH
J10008-4030-5 4.030 1/16” 0.187 DMB 1/16” 0.187 IPT 3/16” 0.150 CUF 8
J10008-4040-5 4.040 1/16” 0.187 DMB 1/16” 0.187 IPT 3/16” 0.150 CUF 8
J10008-4060-5 4.060 1/16” 0.187 DMB 1/16” 0.187 IPT 3/16” 0.150 CUF 8
J10008-4125-5 4.125 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4130-5 4.130 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4135-5 4.135 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4145-5 4.145 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4155-5 4.155 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4165-5 4.165 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.150 CUF 8
J10008-4280-5 4.280 1/16” 0.198 DMB 1/16” 0.198 IPT 3/16” 0.150 CUF 8
J10008-4310-5 4.310 1/16” 0.198 DMB 1/16” 0.198 IPT 3/16” 0.150 CUF 8
J10008-4350-5 4.350 1/16” 0.201 DMB 1/16” 0.201 IPT 3/16” 0.150 CUF 8
J10008-4375-5 4.375 1/16” 0.204 DMB 1/16” 0.204 IPT 3/16” 0.150 CUF 8
J10008-4390-5 4.390 1/16” 0.203 DMB 1/16” 0.203 IPT 3/16” 0.150 CUF 8
J10008-4440-5 4.440 1/16” 0.207 DMB 1/16” 0.207 IPT 3/16” 0.155 CUF 8
J100F8-4030-5 4.030 1/16” 0.187 DMB 1/16” 0.187 IPT 3/16” 0.190 CUS 8
J100F8-4040-5 4.040 1/16” 0.187 DMB 1/16” 0.187 IPT 3/16” 0.190 CUS 8
J100F8-4125-5 4.125 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.190 CUS 8
J100F8-4155-5 4.155 1/16” 0.192 DMB 1/16” 0.193 IPT 3/16” 0.190 CUS 8
J100F8-4165-5 4.165 1/16” 0.194 DMB 1/16” 0.194 IPT 3/16” 0.190 CUS 8
J100F8-4185-5 4.185 1/16” 0.192 DMB 1/16” 0.194 IPT 3/16” 0.190 CUS 8
J100H8-4560-5 4.560 1/16” 0.212 DMB 1/16” 0.210 IPT 3/16” 0.190 CUS 8
J100H8-4610-5 4.610 1/16” 0.212 DMB 1/16” 0.212 IPT 3/16” 0.190 CUS 8
J100L8-4600-5 4.600 1/16” 0.212 DMB 1/16” 0.212 IPT 3/16” 0.190 CUS 8
J100S8-4470-5 4.470 1/16” 0.207 DMB 1/16” 0.208 IPT 3/16” 0.205 CUF 8
J100S8-4560-5 4.560 1/16” 0.212 DMB 1/16” 0.210 IPT 3/16” 0.201 CUF 8
J100U8-4600-5 4.600 1/16” 0.212 DMB 1/16” 0.212 IPT 3/16” 0.150 CUF 8
J20008-4310-5 4.310 .043” 0.200 DMB 1/16” 0.198 IPT 3/16” 0.150 CUF 8
J200F8-4310-5 4.310 .043” 0.200 DMB 1/16” 0.198 IPT 3/16” 0.150 CUS 8
J60008-4030-5 4.030 1.5mm 0.160 DMR 1.5mm 0.163 IPC 3.0mm 0.152 CUF 8
J600F8-4030-5 4.030 1.5mm 0.160 DMR 1.5mm 0.163 IPC 3.0mm 0.146 CUF 8
J64004-3810 3.810 1.5mm 0.179 DMB 1.5mm 0.165 IPT 4.0mm 0.125 CUF 4
J68008-3570-5 3.570 1.5mm 0.155 CMR 1.5mm 0.167 IPT 3.0mm 0.150 CUF 8
J71408-4030-5 4.030 .043” .0161 CMK .043” 0.170 DPE 3.0mm 0.152 CUF 8
J714F8-4125-5 4.125 .043” 0.161 CMK .043” 0.170 DPE 3.0mm 0.152 CUF 8
J75008-4125-5 4.125 1.2mm 0.145 CMR 1.5mm 0.170 IPE 3.0mm 0.150 CUF 8
J820F8-4125-5 4.125 1/16” 0.192 HPB 1/16” 0.193 IPT 3/16” 0.190 CUS 8
J890F8-4500-5 4.500 D017 0.173 DMD 1/16” 0.210 IPT 3/16” 0.190 CUS 8
JG3108-4000-7 4.000 1.2mm 0.150 CNR 1.5mm 0.170 IPE 3.0mm 0.152 CUF 8
JG3208-3571-0 3.571 1.2mm 0.135 CNS 1.5mm 0.159 IFC 3.0mm 0.127 CUF 8
JG7708-4155-5 4.155 .043” 0.171 CNR .043” 0.170 DPE 3.0mm 0.152 CUF 8
JG8608-4560-5 4.560 .043” 0.171 CNR 1/16” 0.210 IPT 3/16” 0.150 CUF 8
JG86H8-4610-5 4.610 .043” 0.171 CNR 1/16” 0.195 DPE 3/16” 0.190 CUS 8

JE PRO SEAL PREMIUM
SPORTSMAN RINGS
TOP RING SECOND RING OIL RING
AXIAL RADIAL AXIAL RADIAL AXIAL RADIAL
PART NO. BORE TYPE TYPE TYPE # IN SET
HEIGHT WIDTH HEIGHT WIDTH HEIGHT WIDTH
S100S8-4030-5 4.030 1/16” 0.189 DMB 1/16” 0.189 IPT 3/16” 0.192 CUF 8
S100S8-4280-5 4.280 1/16” 0.200 DMB 1/16” 0.200 IPT 3/16” 0.200 CUS 8
S100S8-4310-5 4.310 1/16” 0.202 DMB 1/16” 0.202 IPT 3/16” 0.205 CUF 8
S100S8-4350-5 4.350 1/16” 0.205 DMB 1/16” 0.205 IPT 3/16” 0.192 CUF 8
S100S8-4530-5 4.530 1/16” 0.206 DMB 1/16” 0.206 IPT 3/16” 0.182 CUF 8
