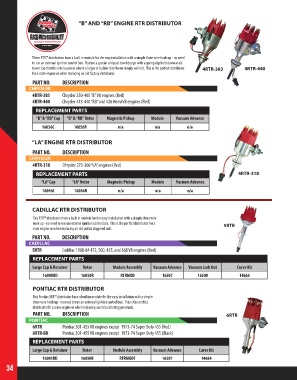

Page 34 - 2018 Master Catalog
P. 34

“B” AND “RB” ENGINE RTR DISTRIBUTOR







              These RTR™ distributors have a built in module for the easy installation with a simple three wire hook up - no need
              to run an external ignition control box.  Feature a special compact bowl design with a spring clip hold down male
              tower cap that fits into locations where a larger or bulkier distributor simply will not.  This is the perfect distributor   4RTR-383  4RTR-440
              for a crate engine or when replacing an old factory distributor.
              PART NO.     DESCRIPTION
             CHRYSLER
              4RTR-383     Chrysler 350-400 “B” V8 engines (Red)
              4RTR-440     Chrysler 413-440 “RB” and 426 Hemi V8 engines (Red)

                REPLACEMENT PARTS
                “B” & “RB” Cap  “B” & “RB” Rotor  Magnetic Pickup  Module  Vacuum Advance
                  16056C        16056R            n/a            n/a          n/a


              “LA” ENGINE RTR DISTRIBUTOR
              PART NO.     DESCRIPTION
             CHRYSLER
              4RTR-318     Chrysler 273-360 “LA” engines (Red)
                REPLACEMENT PARTS                                                                  4RTR-318
                  “LA” Cap     “LA” Rotor    Magnetic Pickup   Module     Vacuum Advance
                  16056C        16056R            n/a            n/a          n/a



              CADILLAC RTR DISTRIBUTOR

               This RTR™ distributor have a built in module for the easy installation with a simple three wire
               hook up - no need to run an external ignition control box.  This is the perfect distributor for a   5RTR
               crate engine or when replacing an old points triggered unit.
              PART NO.     DESCRIPTION
             CADILLAC
              5RTR         Cadillac 1968-84 472, 500, 425, and 368 V8 engines (Red)
               REPLACEMENT PARTS
              Large Cap & Retainer  Rotor       Module Assembly  Vacuum Advance  Vacuum Lock Out   Curve Kit
                   16000RD        16050R           RTRMOD           16507         16508             14664

               PONTIAC RTR DISTRIBUTOR

               This Pontiac RTR™ distributor have a built in module for the easy installation with a simple
               three wire hook up - no need to run an external ignition control box.  This is the perfect
               distributor for a crate engine or when replacing an old points triggered unit.
              PART NO.     DESCRIPTION                                                        6RTR
             PONTIAC
              6RTR         Pontiac 301-455 V8 engines except  1973-74 Super Duty 455 (Red)
              6RTR-BK      Pontiac 301-455 V8 engines except  1973-74 Super Duty 455 (Black)
              REPLACEMENT PARTS
              Large Cap & Retainer  Rotor       Module Assembly  Vacuum Advance    Curve Kit

                   16001RD        16050R          RTRMODF           16507           14664
    34
   29   30   31   32   33   34   35   36   37   38   39
