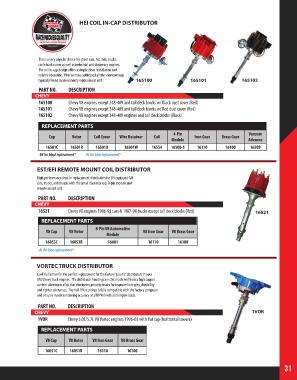

Page 31 - 2018 Master Catalog

HEI COIL IN-CAP DISTRIBUTOR

This is a very popular choice for street cars, hot rods, trucks,
circle track racers as well as industrial and stationary engines.
The coil in-cap design offers a simple clean installation and
reliable operation. Plus we have addressed all the shortcomings
typically found in an economy replacement unit. 165100 165101 165102
PART NO. DESCRIPTION
CHEVY
165100 Chevy V8 engines except 348-409 and tall deck blocks w/ Black dust cover (Red)
165101 Chevy V8 engines except 348-409 and tall deck blocks w/ Red dust cover (Red)
165102 Chevy V8 engines except 348-409 engines and tall deck blocks (Black)

REPLACEMENT PARTS
4-Pin Vacuum
Cap Rotor Coil Cover Wire Retainer Coil Iron Gear Brass Gear
Module Advance
16501C 16501R 16501D 16501W 16554 16500-5 16110 16100 16509
-BK for black replacement* -BL for blue replacement*

EST/EFI REMOTE MOUNT COIL DISTRIBUTOR
High performance drop-in replacement distributors for EFI equipped GM
cars, trucks, and chassis with the small diameter cap, 8-pin module and
remote mount coil.
PART NO. DESCRIPTION
CHEVY
16521 Chevy V8 engines 1986-93 cars & 1987-98 trucks except tall deck blocks (Red) 16521
REPLACEMENT PARTS
8-Pin V8 Automotive
V8 Cap V8 Rotor V8 Iron Gear V8 Brass Gear
Module
16053C 16053R 16601 16110 16100
-BL for blue replacement*

VORTEC TRUCK DISTRIBUTOR
Look no further for the perfect replacement for the factory “plastic” distributors in your
GM/Chevy truck engines. The distributor housings are CNC machined from a high copper
content aluminum alloy that eliminates porosity issues for improved integrity, durability
and tighter tolerances. The Hall Effect pickup is fully compatible with the factory computer
and ensures maximum timing accuracy at all RPM levels and engine loads.

PART NO. DESCRIPTION
CHEVY 1VOR
1VOR Chevy 5.0L/5.7L V8 Vortec engines 1996-03 with flat cap (horizontal towers)

REPLACEMENT PARTS

V8 Cap V8 Rotor V8 Iron Gear V8 Brass Gear

16051C 16051R 16110 16100

31
