KNX ADVANCED COURSE

Start and finish…: The controller will firstly read the value status, then calculate the
next telegram to be sent, and also stop with a 0% value telegram

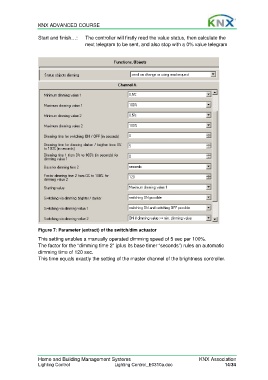

Figure 7: Parameter (extract) of the switch/dim actuator
This setting enables a manually operated dimming speed of 5 sec per 100%.
The factor for the “dimming time 2” (plus its base timer “seconds”) rules an automatic
dimming time of 120 sec.
This time equals exactly the setting of the master channel of the brightness controller.
