KNX ADVANCED COURSE

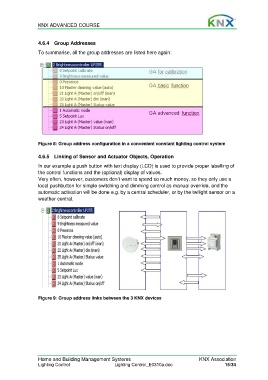

4.6.4 Group Addresses
To summarise, all the group addresses are listed here again:
Figure 8: Group address configuration in a convenient constant lighting control system
4.6.5 Linking of Sensor and Actuator Objects, Operation
In our example a push button with text display (LCD) is used to provide proper labelling of
the control functions and the (optional) display of values.
Very often, however, customers don’t want to spend so much money, so they only use a
local pushbutton for simple switching and dimming control as manual override, and the
automatic activation will be done e.g. by a central scheduler, or by the twilight sensor on a
weather central.
Figure 9: Group address links between the 3 KNX devices
