X-POWER X-POWER

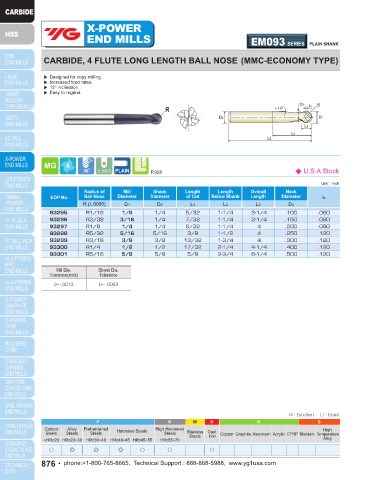

END MILLS EM093 SERIES PLAIN SHANK END MILLS EM096 SERIES PLAIN SHANK

CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE (MMC-ECONOMY TYPE) CARBIDE, 2 FLUTE LONG LENGTH BALL NOSE (MMC-SPHERE TYPE)

▶ Designed for copy milling. ▶ Designed for copy milling.
▶ Increased feed rates. ▶ Increased feed rates.
▶ 15° inclination. ▶ 15° inclination.
▶ Easy to regrind. ▶ Sphere Angle : 250°

R R
↙ ↙

P.928 ◆ U.S.A Stock P.927 ◆ U.S.A Stock
Unit : Inch Unit : Inch
Radius of Mill Shank Length Length Overall Neck Radius of Mill Shank Length Length Overall Neck
EDP No. Ball Nose Diameter Diameter of Cut Below Shank Length Diameter Iz EDP No. Ball Nose Diameter Diameter of Cut Below Shank Length Diameter
R (±.0005) D1 D2 L1 L3 L2 D3 R (±.0005) D1 D2 L1 L3 L2 D3
93295 R1/16 1/8 1/4 5/32 1-1/4 3-1/4 .100 .060 93410 R1/16 1/8 1/4 .100 1-1/4 3-1/4 .100
93296 R3/32 3/16 1/4 7/32 1-1/4 3-1/4 .150 .080 93411 R3/32 3/16 1/4 .150 1-1/4 3-1/4 .150
93297 R1/8 1/4 1/4 9/32 1-1/4 4 .200 .080 93412 R1/8 1/4 1/4 .200 1-1/8 4 .200
93298 R5/32 5/16 5/16 3/8 1-1/2 4 .250 .120 93413 R5/32 5/16 5/16 .250 1-3/8 4 .250
93299 R3/16 3/8 3/8 13/32 1-3/4 4 .300 .120 93414 R3/16 3/8 3/8 .300 1-5/8 4 .300
93300 R1/4 1/2 1/2 17/32 2-1/4 4-1/4 .400 .120 93415 R1/4 1/2 1/2 .400 2-3/16 4-1/4 .400
93301 R5/16 5/8 5/8 5/8 2-3/4 6-1/4 .500 .120 93416 R5/16 5/8 5/8 .500 2-3/4 6-1/4 .500

Mill Dia. Shank Dia. Mill Dia. Shank Dia.
Tolerance(inch) Tolerance Tolerance(inch) Tolerance
0~-.0010 0~-.0003 0~-.0010 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Iron
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
