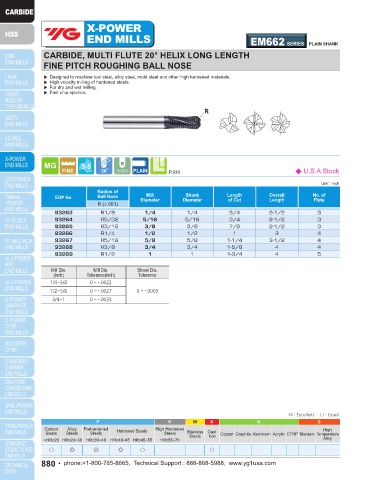

Page 880 - YG 2019

X-POWER X-POWER
END MILLS EM662 SERIES PLAIN SHANK END MILLS EM966 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE 20° HELIX LONG LENGTH CARBIDE, 2 FLUTE for RIB PROCESSING
FINE PITCH ROUGHING BALL NOSE

▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials. ▶ For deep slotting & pocketing.
▶ High velocity milling of hardened steels. ▶ For depths of 6 to 10X cutting diameter.
▶ For dry and wet milling. ▶ Machine carbon steel, alloy steel, tool steel, die and mold steels.
▶ Fast chip ejection. ▶ Suitable for high speed cutting and high precision machining.
▶ Designed with reinforced shank for higher stability and rigidity.
▶ Long neck design for deep machining near walls.
R
↙
D3
D2 D1
L1
L3
L2

P.930 ◆ U.S.A Stock P.930 ◆ U.S.A Stock
Unit : Inch Unit : Inch
Radius of Mill Shank Length Length Overall Neck
Mill
Shank
EDP No. Ball Nose Diameter Diameter Length Overall No. of EDP No. Diameter Diameter of Cut Below Shank Length Diameter
Flute
Length
of Cut
R (±.001) D1 D2 L1 L3 L2 D3
93263 R1/8 1/4 1/4 3/4 2-1/2 3 93548 1/32 1/8 3/64 7/32 2 .029
93264 R5/32 5/16 5/16 3/4 2-1/2 3 93549 1/32 1/8 3/64 5/16 2 .029
93265 R3/16 3/8 3/8 7/8 2-1/2 3 93550 3/64 1/8 1/16 7/32 2 .045
93266 R1/4 1/2 1/2 1 3 4 93551 3/64 1/8 1/16 9/32 2 .045
93267 R5/16 5/8 5/8 1-1/4 3-1/2 4 93552 3/64 1/8 1/16 1/2 2 .045
93268 R3/8 3/4 3/4 1-5/8 4 4 93553 1/16 1/8 3/32 5/16 2 .060
93269 R1/2 1 1 1-3/4 4 5 93554 1/16 1/8 3/32 3/8 2 .060
93555 1/16 1/8 3/32 1/2 2 .060
Mill Dia. Mill Dia. Shank Dia. 93556 1/16 1/8 3/32 5/8 2 .060
(inch) Tolerance(inch) Tolerance 93557 5/64 1/8 1/8 1/2 2 .076
1/4~3/8 0 ~ -.0022 93558 5/64 1/8 1/8 5/8 2 .076
93559 3/32 1/8 9/64 1/2 2 .090
1/2~5/8 0 ~ -.0027 0 ~ -.0003
93560 3/32 1/8 9/64 5/8 2 .090
3/4~1 0 ~ -.0033
93561 1/8 1/4 3/16 9/16 2-1/4 .120
93562 1/8 1/4 3/16 3/4 2-1/4 .120
Mill Dia. Shank Dia.
Tolerance(inch) Tolerance
0~-.0006 0~-.0003

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Iron
Iron
Steels
Steels
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ◎ ◎ ◎ ○ ○
880 • phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com phone:+1-800-765-8665, Technical Support : 888-868-5988, www.yg1usa.com • 881
