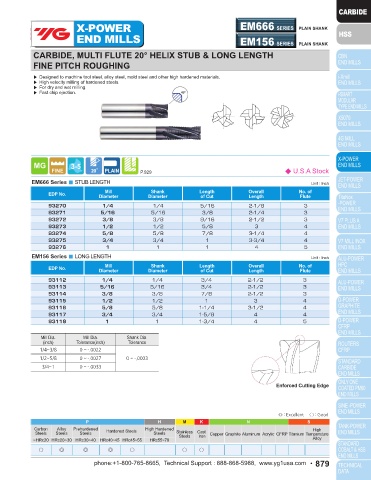

X-POWER X-POWER EM666 SERIES PLAIN SHANK
END MILLS EM097 SERIES PLAIN SHANK END MILLS EM156 SERIES PLAIN SHANK

CARBIDE, MULTI FLUTE 20° HELIX STUB & LONG LENGTH
CARBIDE, 4 FLUTE LONG LENGTH BALL NOSE (MMC-SPHERE TYPE)
FINE PITCH ROUGHING

▶ Designed for copy milling. ▶ Designed to machine tool steel, alloy steel, mold steel and other high hardened materials.
▶ Increased feed rates. ▶ High velocity milling of hardened steels.
▶ 15° inclination. ▶ For dry and wet milling.
▶ Sphere Angle : 250° ▶ Fast chip ejection.

R
↙

P.928 ◆ U.S.A Stock P.929 ◆ U.S.A Stock
Unit : Inch EM666 Series ■ STUB LENGTH Unit : Inch
Radius of Mill Shank Length Length Overall Neck EDP No. Mill Shank Length Overall No. of
EDP No. Ball Nose Diameter Diameter of Cut Below Shank Length Diameter Diameter Diameter of Cut Length Flute
R (±.0005) D1 D2 L1 L3 L2 D3 93270 1/4 1/4 5/16 2-1/8 3
93417 R1/16 1/8 1/4 .100 1-1/4 3-1/4 .100 93271 5/16 5/16 3/8 2-1/4 3
93418 R3/32 3/16 1/4 .150 1-1/4 3-1/4 .150 93272 3/8 3/8 9/16 2-1/2 3
93419 R1/8 1/4 1/4 .200 1-1/8 4 .200 93273 1/2 1/2 5/8 3 4
93420 R5/32 5/16 5/16 .250 1-3/8 4 .250 93274 5/8 5/8 7/8 3-1/4 4
93421 R3/16 3/8 3/8 .300 1-5/8 4 .300 93275 3/4 3/4 1 3-3/4 4
93422 R1/4 1/2 1/2 .400 2-3/16 4-1/4 .400 93276 1 1 1 4 5
93423 R5/16 5/8 5/8 .500 2-3/4 6-1/4 .500 EM156 Series ■ LONG LENGTH Unit : Inch
Mill
Shank
Mill Dia. Shank Dia. EDP No. Diameter Diameter Length Overall No. of
Length
of Cut
Flute
Tolerance(inch) Tolerance
93112 1/4 1/4 3/4 2-1/2 3
0~-.0010 0~-.0003
93113 5/16 5/16 3/4 2-1/2 3
93114 3/8 3/8 7/8 2-1/2 3
93115 1/2 1/2 1 3 4
93116 5/8 5/8 1-1/4 3-1/2 4
93117 3/4 3/4 1-5/8 4 4
93118 1 1 1-3/4 4 5
Mill Dia. Mill Dia. Shank Dia.
(inch) Tolerance(inch) Tolerance
1/4~3/8 0 ~ -.0022
1/2~5/8 0 ~ -.0027 0 ~ -.0003
3/4~1 0 ~ -.0033

◎ : Excellent ◯ : Good ◎ : Excellent ◯ : Good
P H M K N S P H M K N S
Carbon Alloy Prehardened High Hardened High Carbon Alloy Prehardened High Hardened High
Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature Steels Steels Steels Hardened Steels Steels Stainless Cast Copper Graphite Aluminum Acrylic CFRP Titanium Temperature
Steels
Iron
Steels
Iron
~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy ~HRc20 HRc20~30 HRc30~40 HRc40~45 HRc45~55 HRc55~70 Alloy
○ ◎ ◎ ◎ ○ ○ ○ ○ ◎ ◎ ◎ ○ ○ ○
