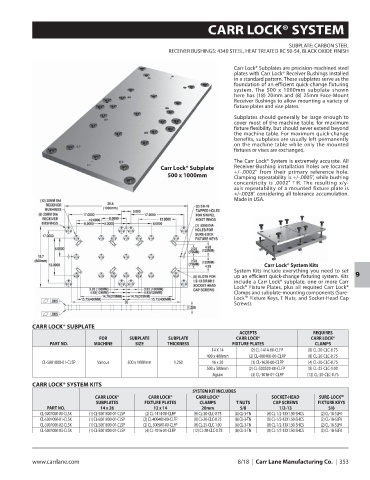

CARR LOCK® SYSTEM

SUBPLATE: CARBON STEEL
RECEIVER BUSHINGS: 4340 STEEL, HEAT TREATED RC 50-54, BLACK OXIDE FINISH

Carr Lock® Subplates are precision-machined steel
plates with Carr Lock® Receiver Bushings installed
in a standard pattern. These subplates serve as the
foundation of an efficient quick-change fixturing
system. The 500 x 1000mm subplate shown
here has (18) 20mm and (8) 25mm Face-Mount
Receiver Bushings to allow mounting a variety of
fixture plates and vise plates.

Subplates should generally be large enough to
cover most of the machine table, for maximum
fixture flexibility, but should never extend beyond
the machine table. For maximum quick-change
benefits, subplates are usually left permanently
on the machine table while only the mounted
fixtures or vises are exchanged.

The Carr Lock® System is extremely accurate. All
Carr Lock® Subplate Receiver-Bushing installation holes are located
+/-.0002" from their primary reference hole.
500 x 1000mm Clamping repeatability is +/-.0005", while bushing
concentricity is .0002" TIR. The resulting x/y-
axis repeatability of a mounted fixture plate is
+/-.0028" considering all tolerance accumulation.
Made in USA.

Carr Lock® System Kits
System Kits include everything you need to set
up an efficient quick-change fixturing system. Kits 9
include a Carr Lock® subplate, one or more Carr
Lock® Fixture Plates, plus all required Carr Lock®
Clamps and subplate-mounting components (Sure-
Lock™ Fixture Keys, T Nuts, and Socket-Head Cap
Screws).

CARR LOCK® SUBPLATE
ACCEPTS REQUIRES
FOR SUBPLATE SUBPLATE CARR LOCK® CARR LOCK®
PART NO. MACHINE SIZE THICKNESS FIXTURE PLATES CLAMPS
14 X 14 (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75
400 x 400mm (2) CL-400400-00-CLFP (8) CL-20-CLC-0.75
CL-5001000-01-CLSP Various 500 x 1000mm 1.250 16 x 20 (1) CL-1620-00-CLFP (4) CL-20-CLC-0.75
500 x 500mm (2) CL-500500-00-CLFP (8) CL-25-CLC-1.00
Jigsaw (3) CL-1016-01-CLFP (12) CL-20-CLC-0.75
CARR LOCK® SYSTEM KITS
SYSTEM KIT INCLUDES
CARR LOCK® CARR LOCK® CARR LOCK® SOCKET-HEAD SURE-LOCK™
SUBPLATES FIXTURE PLATES CLAMPS T NUTS CAP SCREWS FIXTURE KEYS
PART NO. 14 x 26 12 x 14 20mm 5/8 1/2-13 5/8
CL-5001000-00-CLSK (1) CL-5001000-01-CLSP (2) CL-1414-00-CLFP (8) CL-20-CLC-0.75 (8) CL-3-TN (8) CL-1/2-13X1.50-SHCS (2) CL-18-SLFK
CL-5001000-01-CLSK (1) CL-5001000-01-CLSP (2) CL-400400-00-CLFP (8) CL-20-CLC-0.75 (8) CL-3-TN (8) CL-1/2-13X1.50-SHCS (2) CL-18-SLFK
CL-5001000-02-CLSK (1) CL-5001000-01-CLSP (2) CL-500500-00-CLFP (8) CL-25-CLC-1.00 (8) CL-3-TN (8) CL-1/2-13X1.50-SHCS (2) CL-18-SLFK
CL-5001000-03-CLSK (1) CL-5001000-01-CLSP (4) CL-1016-01-CLFP (12) CL-20-CLC-0.75 (8) CL-3-TN (8) CL-1/2-13X1.50-SHCS (2) CL-18-SLFK
