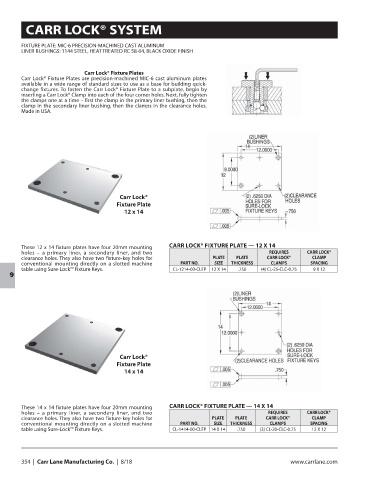

CARR LOCK® SYSTEM
FIXTURE PLATE: MIC-6 PRECISION-MACHINED CAST ALUMINUM
LINER BUSHINGS: 1144 STEEL, HEAT TREATED RC 58-64, BLACK OXIDE FINISH
Carr Lock® Fixture Plates
Carr Lock® Fixture Plates are precision-machined MIC-6 cast aluminum plates
available in a wide range of standard sizes to use as a base for building quick-
change fixtures. To fasten the Carr Lock® Fixture Plate to a subplate, begin by
inserting a Carr Lock® Clamp into each of the four corner holes. Next, fully tighten
the clamps one at a time – first the clamp in the primary liner bushing, then the
clamp in the secondary liner bushing, then the clamps in the clearance holes.
Made in USA.
Carr Lock®
Fixture Plate
12 x 14
CARR LOCK® FIXTURE PLATE — 12 X 14
These 12 x 14 fixture plates have four 20mm mounting
holes – a primary liner, a secondary liner, and two REQUIRES CARR LOCK®
clearance holes. They also have two fixture-key holes for PLATE PLATE CARR LOCK® CLAMP
conventional mounting directly on a slotted machine PART NO. SIZE THICKNESS CLAMPS SPACING
table using Sure-Lock™ Fixture Keys. CL-1214-00-CLFP 12 X 14 .750 (4) CL-25-CLC-0.75 9 X 12
9
Carr Lock®
Fixture Plate
14 x 14
These 14 x 14 fixture plates have four 20mm mounting CARR LOCK® FIXTURE PLATE — 14 X 14
holes – a primary liner, a secondary liner, and two REQUIRES CARR LOCK®
clearance holes. They also have two fixture-key holes for PLATE PLATE CARR LOCK® CLAMP
conventional mounting directly on a slotted machine PART NO. SIZE THICKNESS CLAMPS SPACING
table using Sure-Lock™ Fixture Keys. CL-1414-00-CLFP 14 X 14 .750 (3) CL-20-CLC-0.75 12 X 12
