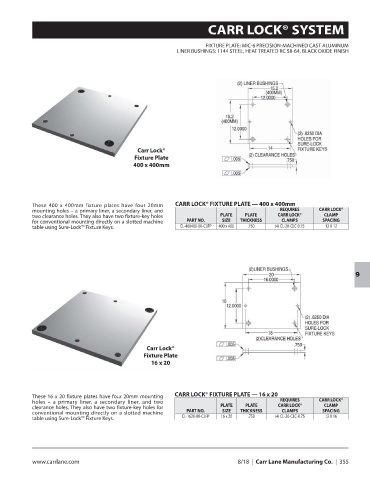

CARR LOCK® SYSTEM
FIXTURE PLATE: MIC-6 PRECISION-MACHINED CAST ALUMINUM
LINER BUSHINGS: 1144 STEEL, HEAT TREATED RC 58-64, BLACK OXIDE FINISH
Carr Lock®
Fixture Plate
400 x 400mm
These 400 x 400mm fixture plates have four 20mm CARR LOCK® FIXTURE PLATE — 400 x 400mm
mounting holes – a primary liner, a secondary liner, and REQUIRES CARR LOCK®
two clearance holes. They also have two fixture-key holes PLATE PLATE CARR LOCK® CLAMP
for conventional mounting directly on a slotted machine PART NO. SIZE THICKNESS CLAMPS SPACING
table using Sure-Lock™ Fixture Keys. CL-400400-00-CLFP 400 x 400 .750 (4) CL-20-CLC-0.75 12 X 12
9
Carr Lock®
Fixture Plate
16 x 20
These 16 x 20 fixture plates have four 20mm mounting CARR LOCK® FIXTURE PLATE — 16 x 20
holes – a primary liner, a secondary liner, and two REQUIRES CARR LOCK®
clearance holes. They also have two fixture-key holes for PLATE PLATE CARR LOCK® CLAMP
conventional mounting directly on a slotted machine PART NO. SIZE THICKNESS CLAMPS SPACING
table using Sure-Lock™ Fixture Keys. CL-1620-00-CLFP 16 x 20 .750 (4) CL-20-CLC-0.75 12 X 16
