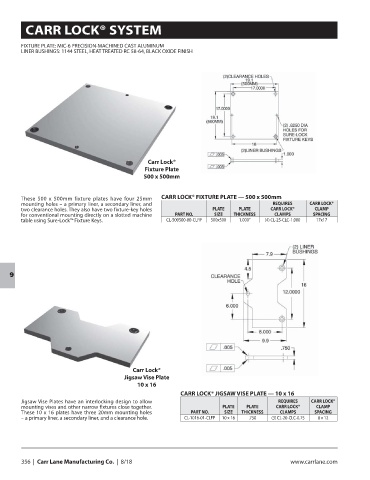

CARR LOCK® SYSTEM
FIXTURE PLATE: MIC-6 PRECISION-MACHINED CAST ALUMINUM
LINER BUSHINGS: 1144 STEEL, HEAT TREATED RC 58-64, BLACK OXIDE FINISH
Carr Lock®
Fixture Plate
500 x 500mm
These 500 x 500mm fixture plates have four 25mm CARR LOCK® FIXTURE PLATE — 500 x 500mm
mounting holes – a primary liner, a secondary liner, and REQUIRES CARR LOCK®
two clearance holes. They also have two fixture-key holes PLATE PLATE CARR LOCK® CLAMP
for conventional mounting directly on a slotted machine PART NO. SIZE THICKNESS CLAMPS SPACING
table using Sure-Lock™ Fixture Keys. CL-500500-00-CLFP 500x500 1.000” (4) CL-25-CLC-1.000 17x17
9
Carr Lock®
Jigsaw Vise Plate
10 x 16
CARR LOCK® JIGSAW VISE PLATE — 10 x 16
Jigsaw Vise Plates have an interlocking design to allow REQUIRES CARR LOCK®
mounting vises and other narrow fixtures close together. PLATE PLATE CARR LOCK® CLAMP
These 10 x 16 plates have three 20mm mounting holes PART NO. SIZE THICKNESS CLAMPS SPACING
– a primary liner, a secondary liner, and a clearance hole. CL-1016-01-CLFP 10 x 16 .750 (3) CL-20-CLC-0.75 8 x 12
