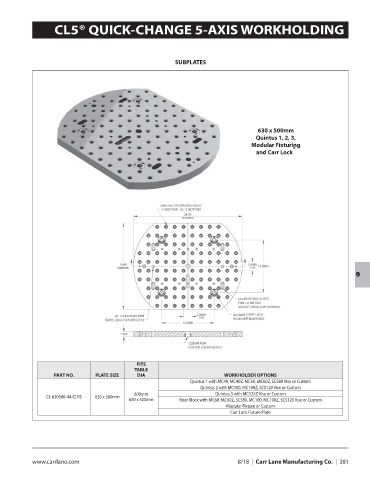

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
SUBPLATES
630 x 500mm
Quintus 1, 2, 3,
Modular Fixturing
®
and Carr Lock
9
FITS
TABLE
PART NO. PLATE SIZE DIA WORKHOLDER OPTIONS
Quintus 1 with MC40, MC40Z, MC60, MC60Z, SCS80 Vise or Custom
Quintus 2 with MC100, MC100Z, SCS120 Vise or Custom
600mm Quintus 3 with MC125Z Vise or Custom
CL-630500-44-CLRS 630 x 500mm
630 x 500mm Riser Block with MC60, MC60Z, SCS80, MC100, MC100Z, SCS120 Vise or Custom
Modular Fixture or Custom
Carr Lock Fixture Plate
