P. 380

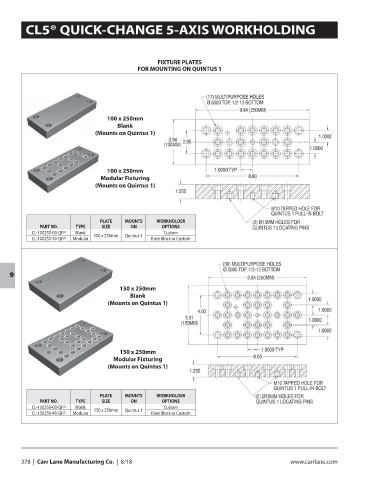

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
FIXTURE PLATES
FOR MOUNTING ON QUINTUS 1
100 x 250mm
Blank
(Mounts on Quintus 1)
(M
100 x 250mm
Modular Fixturing
(Mounts on Quintus 1)
PLATE MOUNTS WORKHOLDER
PART NO. TYPE SIZE ON OPTIONS
CL-100250-00-QFP Blank 100 x 250mm Quintus 1 Custom
CL-100250-40-QFP Modular Riser Block or Custom
9
150 x 250mm
Blank
(M
(Mounts on Quintus 1)M
150 x 250mm
Modular Fixturing
(Mounts on Quintus 1)
PLATE MOUNTS WORKHOLDER
PART NO. TYPE SIZE ON OPTIONS
CL-150250-00-QFP Blank 150 x 250mm Quintus 1 Custom
CL-150250-40-QFP Modular Riser Block or Custom
378 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
