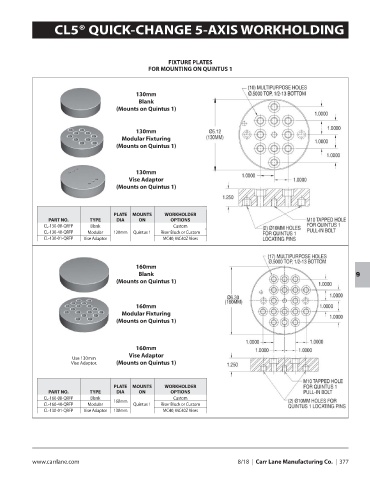

CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
FIXTURE PLATES
FOR MOUNTING ON QUINTUS 1
130mm
Blank
(Mounts on Quintus 1)
130mm
Modular Fixturing
(Mounts on Quintus 1)
130mm
Vise Adaptor
(Mounts on Quintus 1)
PLATE MOUNTS WORKHOLDER
PART NO. TYPE DIA ON OPTIONS
CL-130-00-QRFP Blank Custom
CL-130-40-QRFP Modular 120mm Quintus 1 Riser Block or Custom
CL-130-01-QRFP Vise Adaptor MC40, MC40Z Vises
160mm
Blank
9
(Mounts on Quintus 1)
160mm
Modular Fixturing
(Mounts on Quintus 1)
160mm
Vise Adaptor
Use 130mm
Vise Adaptor. (Mounts on Quintus 1)
PLATE MOUNTS WORKHOLDER
PART NO. TYPE DIA ON OPTIONS
CL-160-00-QRFP Blank Custom
160mm
CL-160-40-QRFP Modular Quintus 1 Riser Block or Custom
CL-130-01-QRFP Vise Adaptor 130mm MC40, MC40Z Vises
